Description

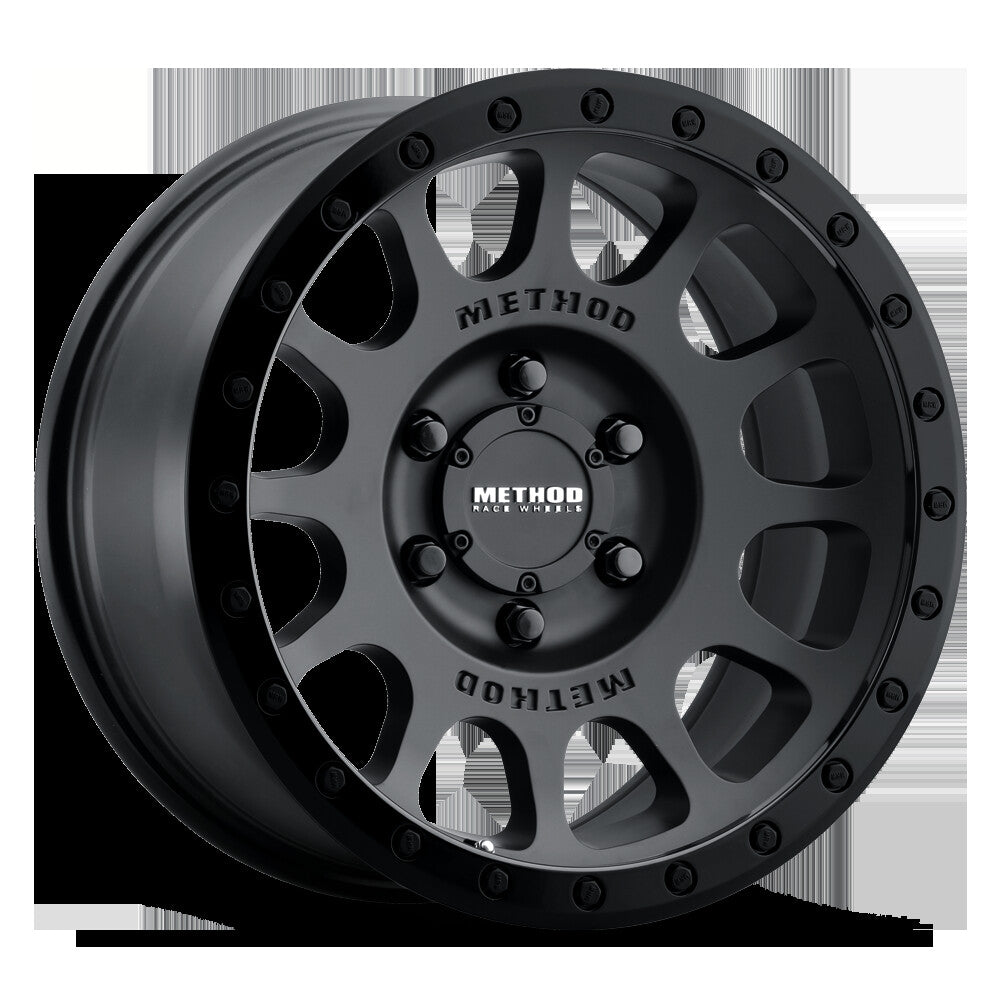

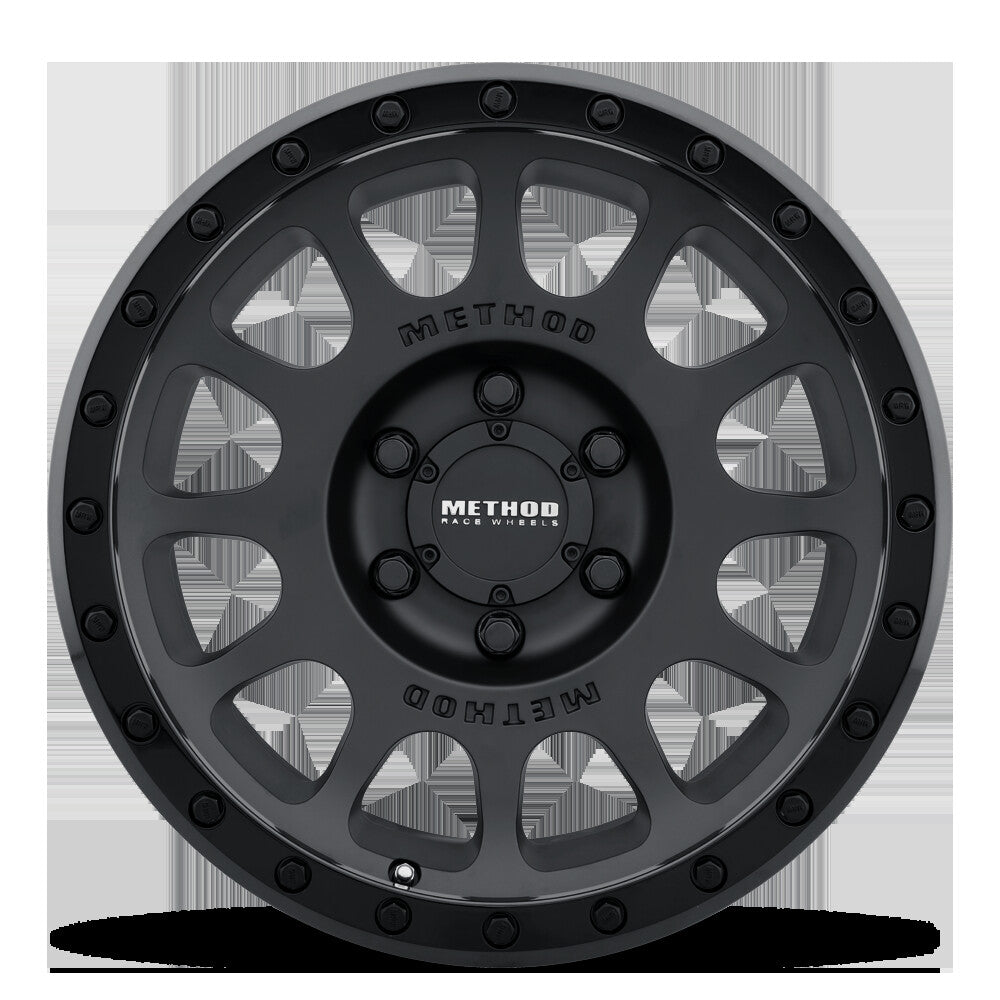

The 305 NV wheel features an iconic 12 window design with a debossed Method logo on either side of the center cap. The lip undercut simulates a true beadlock wheel and has replaceable lip bolts with optional colors available.
Features and Benefits:
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed Method logos
- Street-Loc V.1 lip with undercut simulates true beadlock wheel
- Replaceable Mrw lip bolts with optional colors available
- Push through center cap with embossed Method logo
- Flush cap appearance options available
- Industry’s best lifetime structural warranty
Details:
- Series: STREET (3XX)
- Model: MR305 NV
- Wheel Diameter Inch: 18 Inch
- Wheel Width Inch: 9 Inch
- Bolt Pattern: 6x135
- Bolt Hole: 6
- Bolt Diameter: 135
- Offset mm: 18 mm
- Backside Spacing Inch: 5.75 Inch
- Hub Bore mm: 94 mm
- Wheel Weight LBS: 35.02 LBS
- Max Load LBS: 2650 LBS
- Color/Finish: Matte Black - Gloss Black Lip
- Application: 18x9, 6x135, 18 OS, 2650 lbs
- Cap Part: CP-CWHB93
- Cap Type: Push Thru
- Replacement Cap O-Ring: OR-043
- Accessory Bolt PN: BT-BOLT BLACK
- Hub Centric Yes/No: No
- Lug Hole Diameter mm: 16.2 mm
- Lug Taper Angle: 60
- Mount Pad Diameter mm: 170 mm
- Spoke Depth At 90mm: 5.9
- Spoke Depth At 100mm: 17.8
- Spoke Depth At 120mm: 37.6
- Spoke Depth At 160mm: 43.1
- Inner Wheel Radius At 50mm: 218
- Inner Wheel Radius: 208.1
- Cap Bore mm: 88.2 mm
- Cap Clearance Height mm First Obstruction: 32.9
- Cap Clearance Height mm End Of Cap: 37.5
- Lip Size mm: 35 mm
- Lip Size Inch: 1.38 Inch
- CBM: 0.0873758070000002
