LTW Motorsports

Regular price $659.00
Regular price Sale price $659.00
Sale Sold out

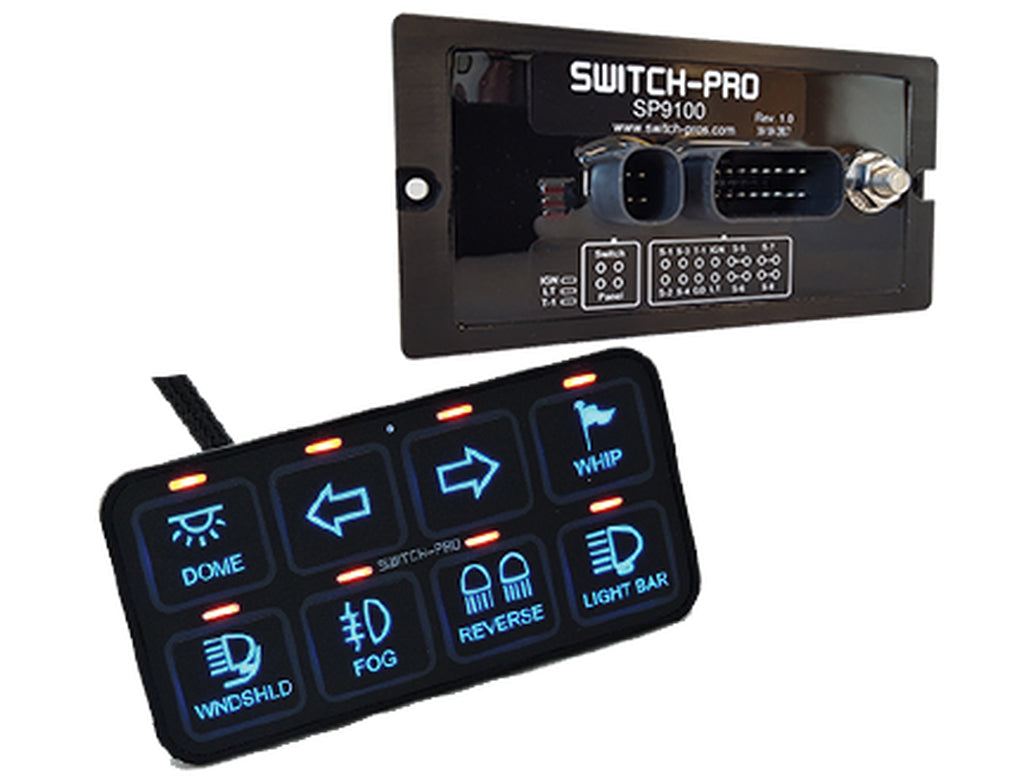

Switch Pannel power system 100 User-selectable switch legends (not shown)
Eight user-programmable switches
Four 35A circuits and four 20A circuits
Waterproof, Solid State 125A Power Module
RGB Backlighting provides unlimited color options, using Color Picker on App
Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
Switches can be programmed for:
On/Off or Momentary
Ignition or Battery Input
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
Memory Function
Master Mode, with ability to turn multiple outputs On AND Off with one touch
Automatic Power-Up upon vehicle start up
Two External trigger inputs can each activate up to four outputs (Active High or Active Low)
Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
Sleep Mode for minimal power consumption
Color Coded circuit wires
LED Input Status Indicators for easy troubleshooting
Time Delay Off function available for all circuits
Splash proof switch panel with Polycarbonate overlay faceplate
Program and control the system from switch panel pad or smart phone
Bluetooth interface with FREE Apple or Android App
Battery Voltage Readout on App screen
No Fuses or Bulky Relay box
Built-In Bluetooth Module

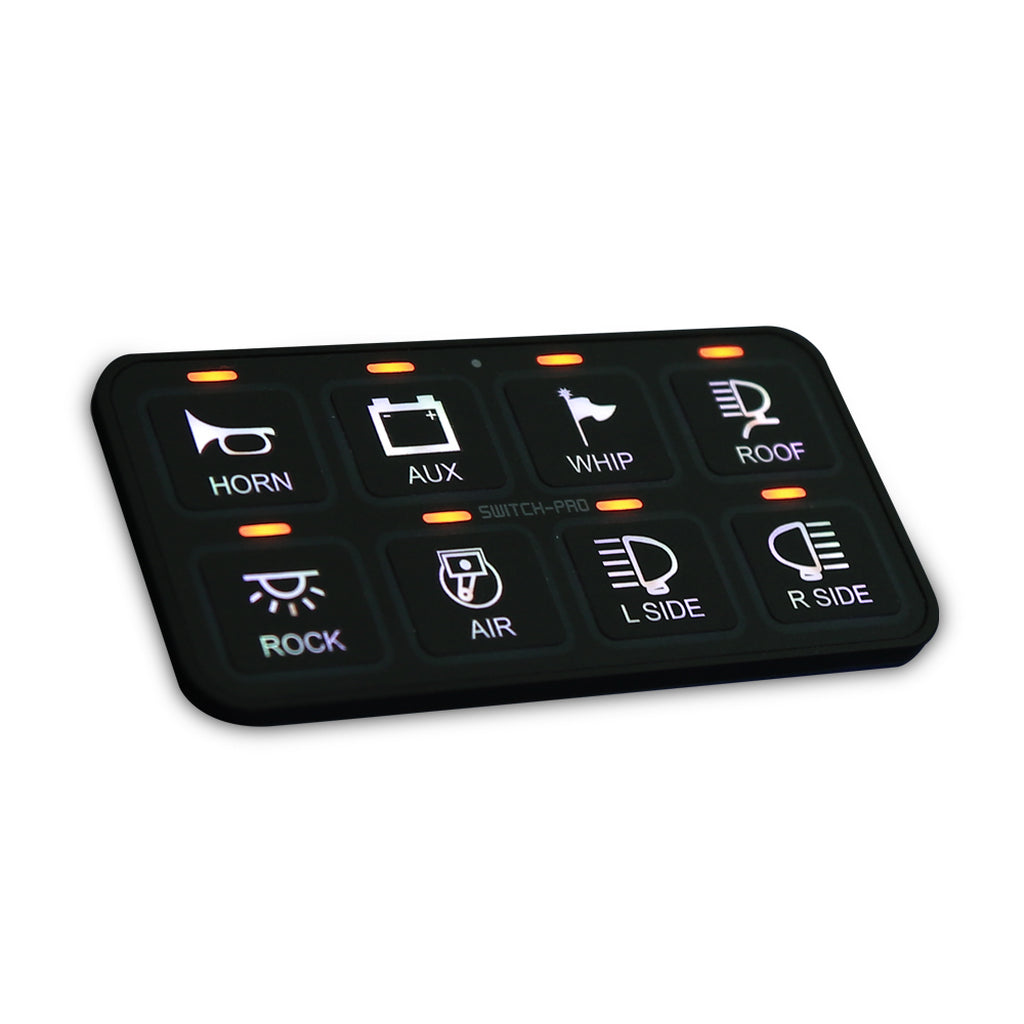

Switch Panel Specs:

RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting

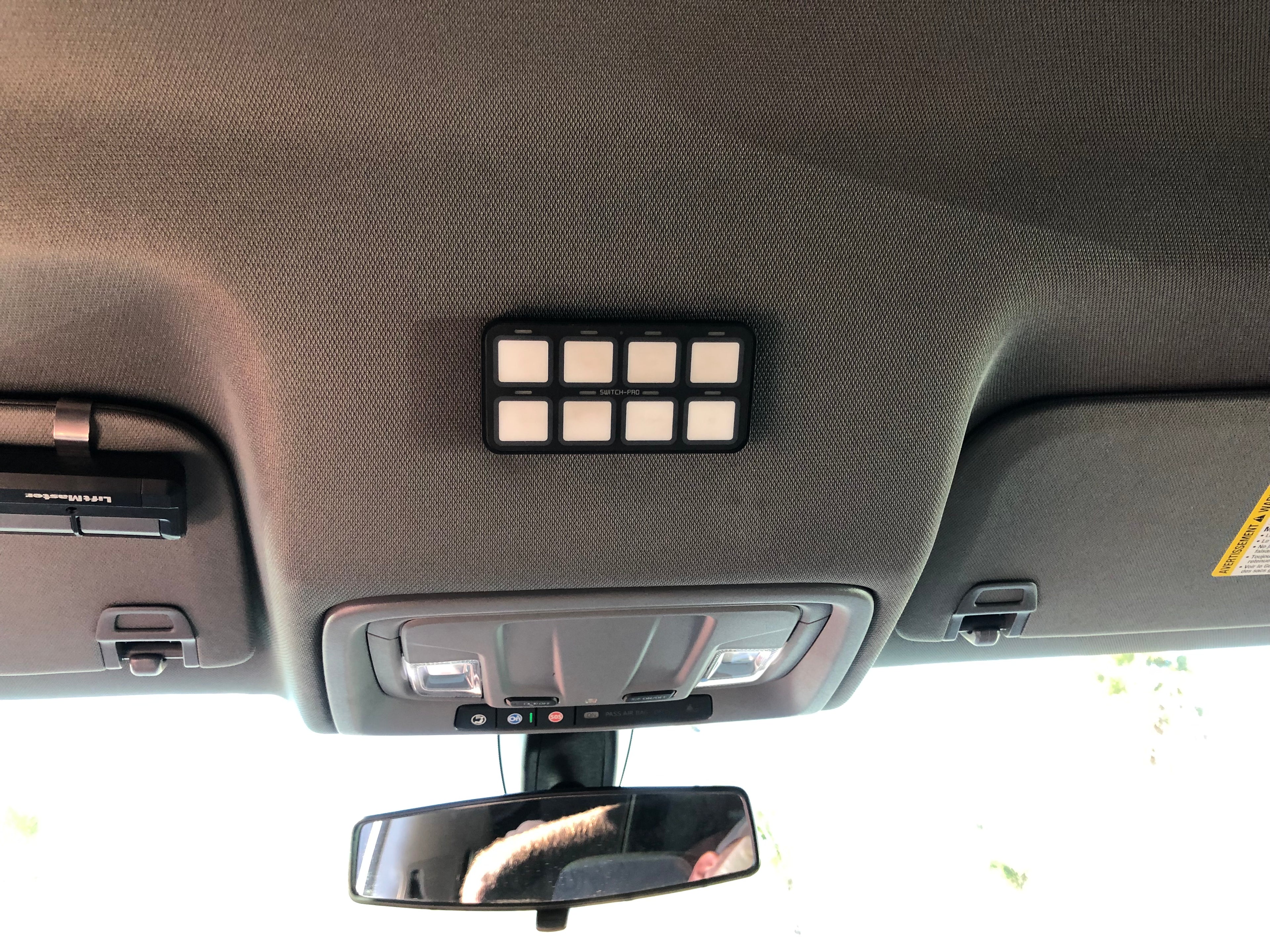

Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
Orange LED switch indicators

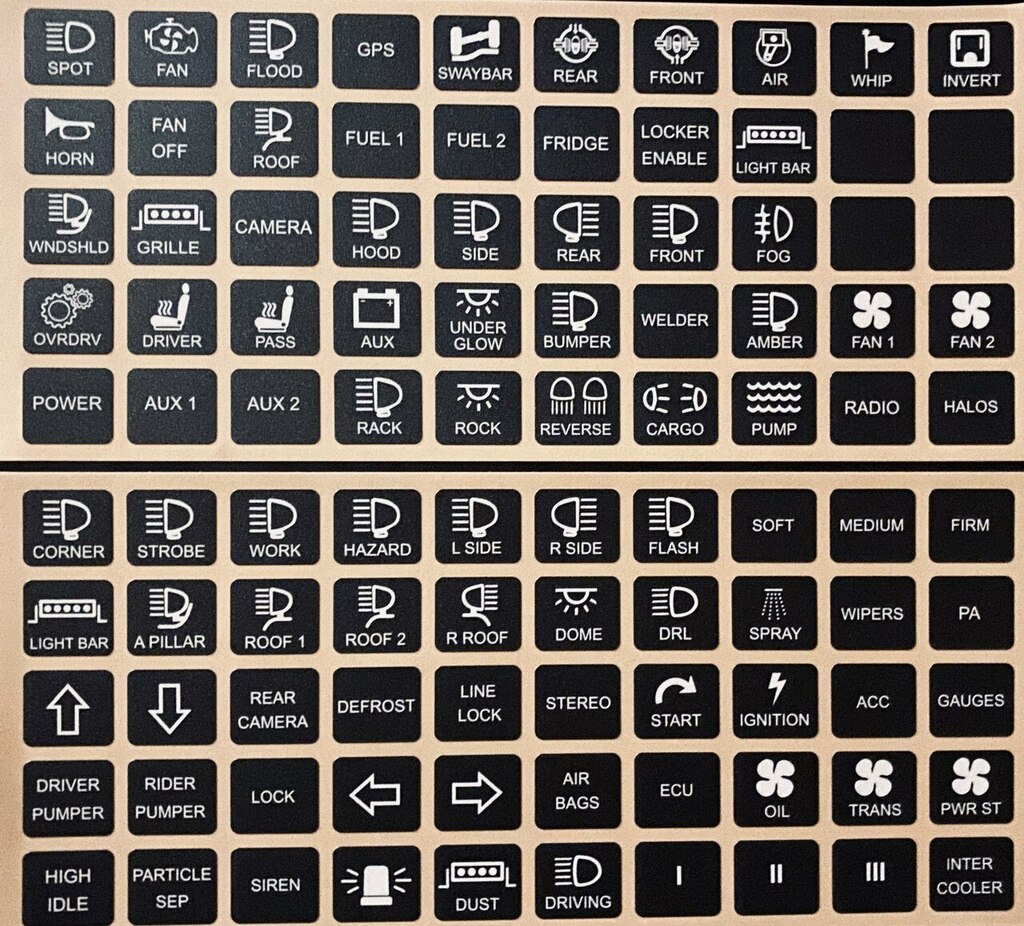

100 User Selectable Legends

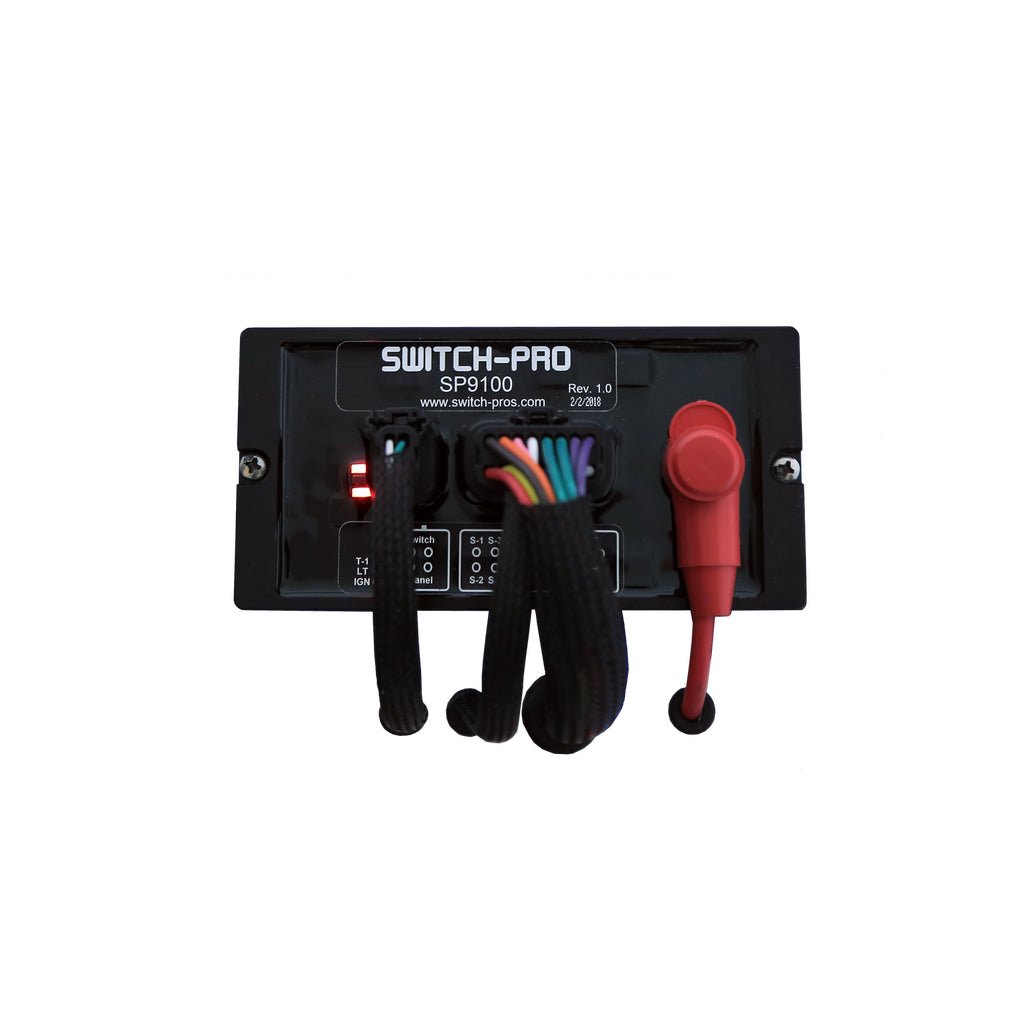

Power Module Specs:

8 Outputs: 4 rated @ 35A, 4 rated @ 20A
125A maximum rating
Waterproof and Solid State
6”L x 3”W x .5”H (excluding connectors)
LED Input Status Indicators for easy troubleshooting
Underhood rated 125° to -40°C

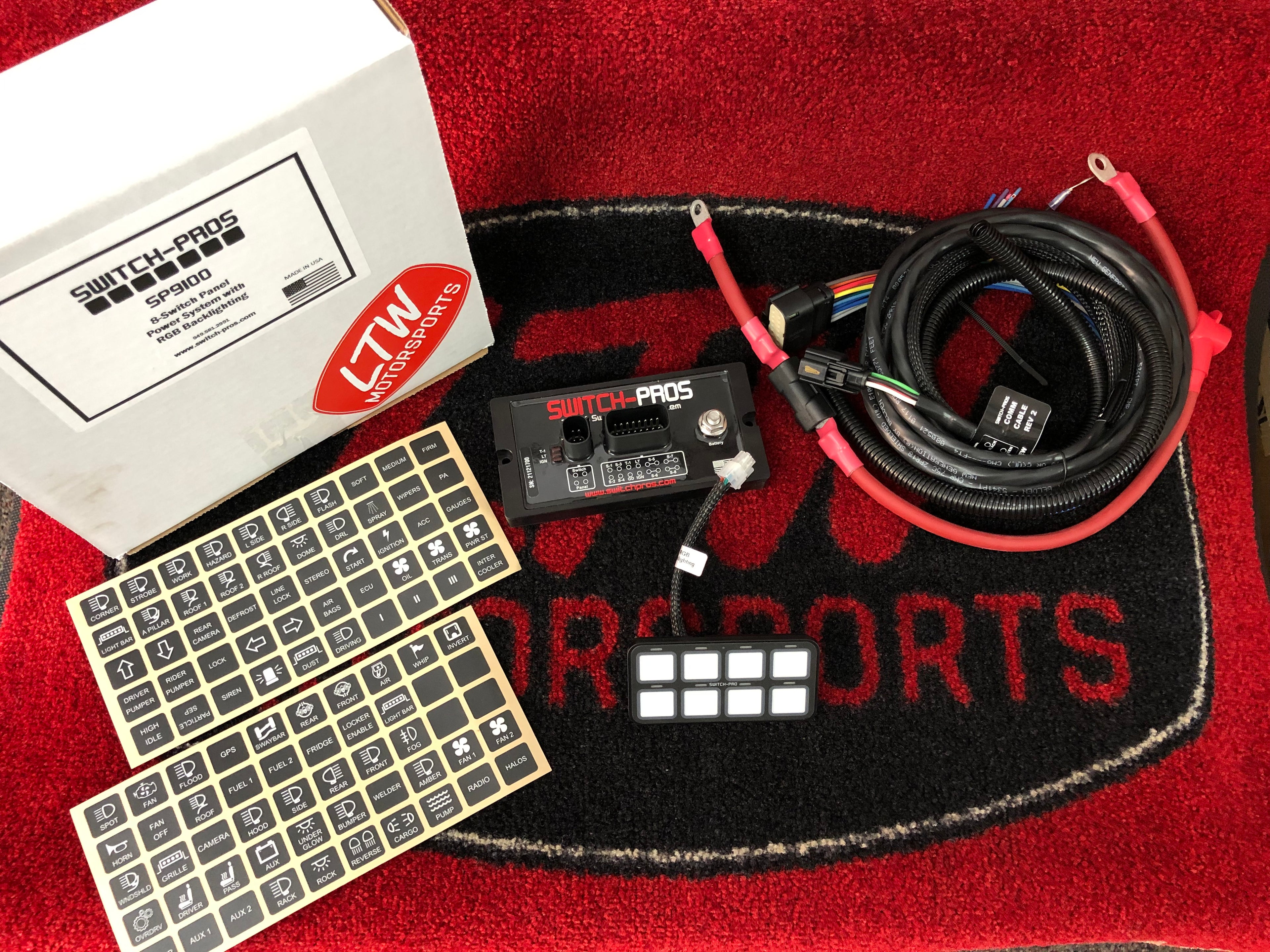

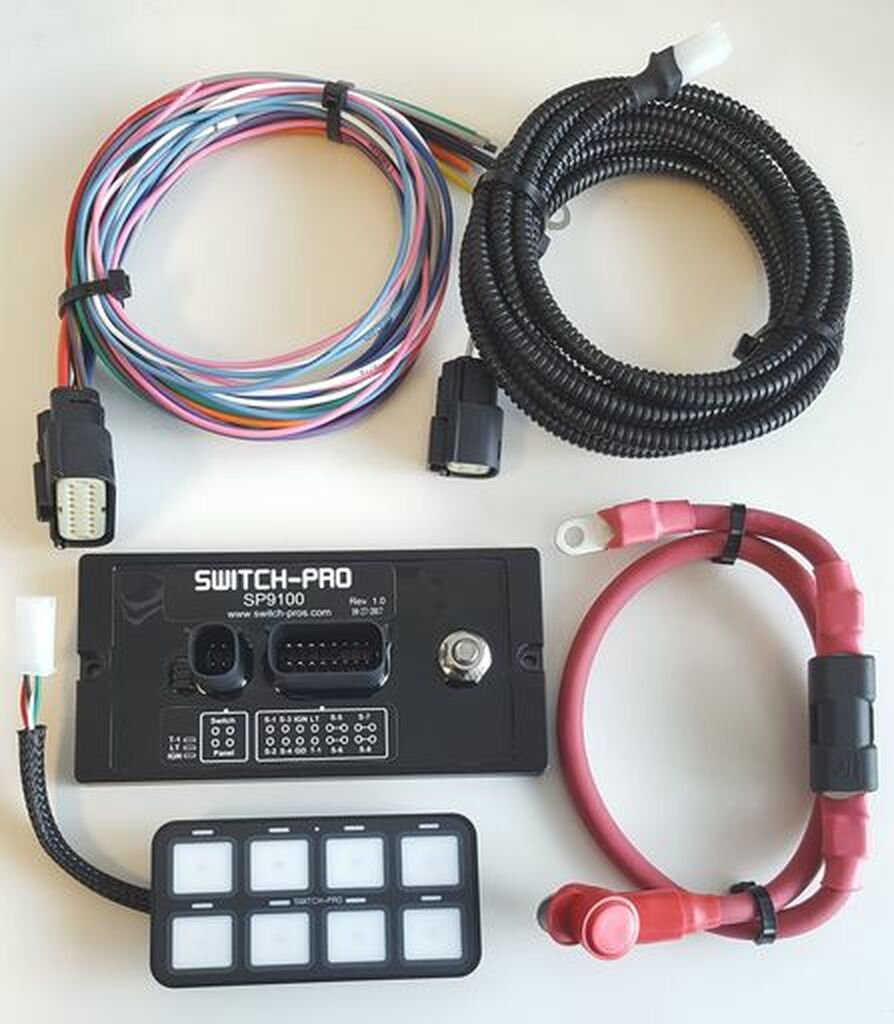

Kit Also Includes:

11’ of Communication Cable between Switch Panel and Power Module
Color Coded Output wires
Wire harness with Waterproof, sealed automotive grade connectors
Power Cable with 125A inline fuse
