Description

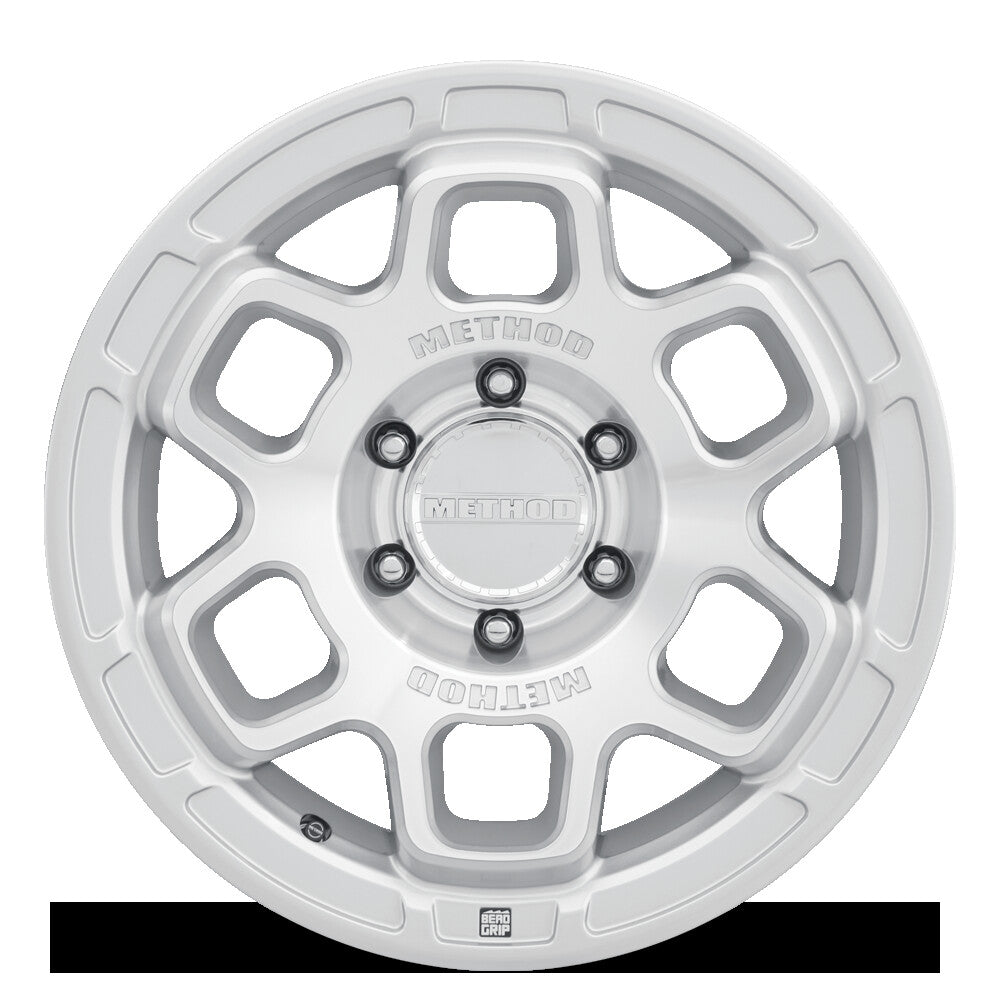

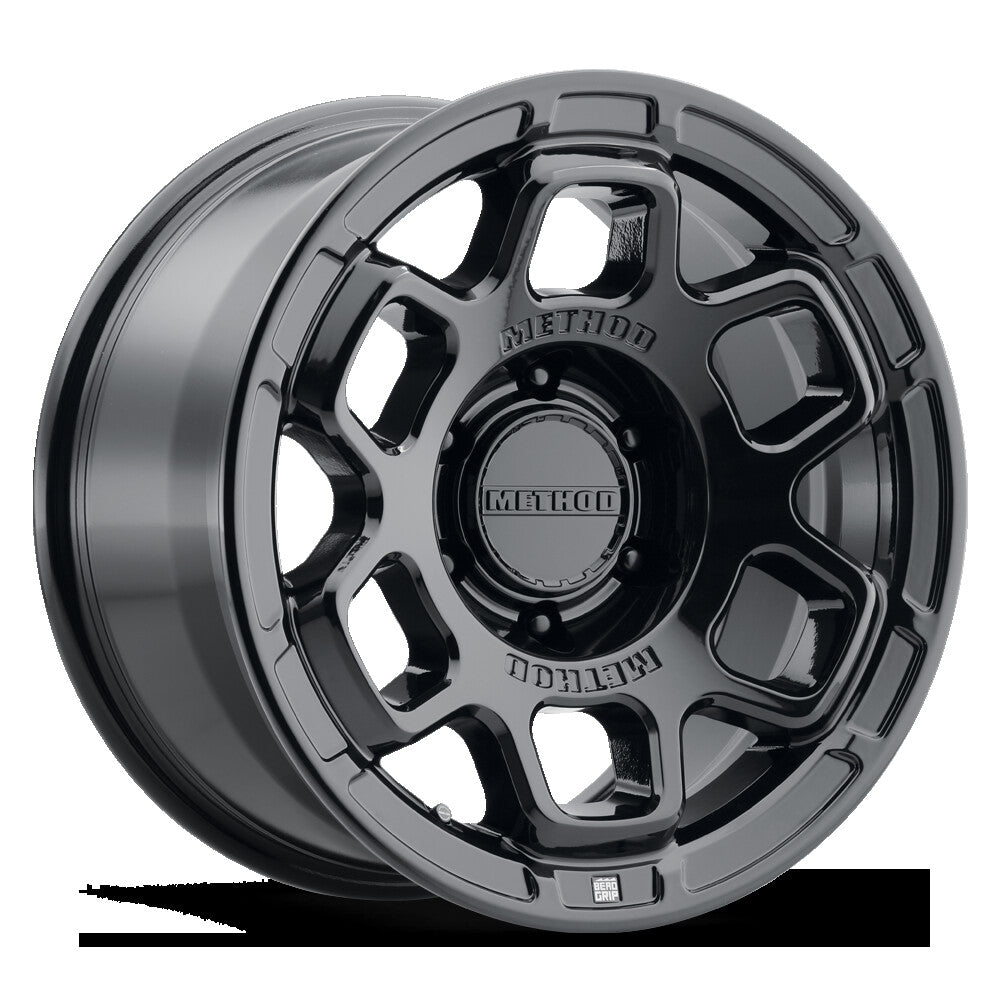

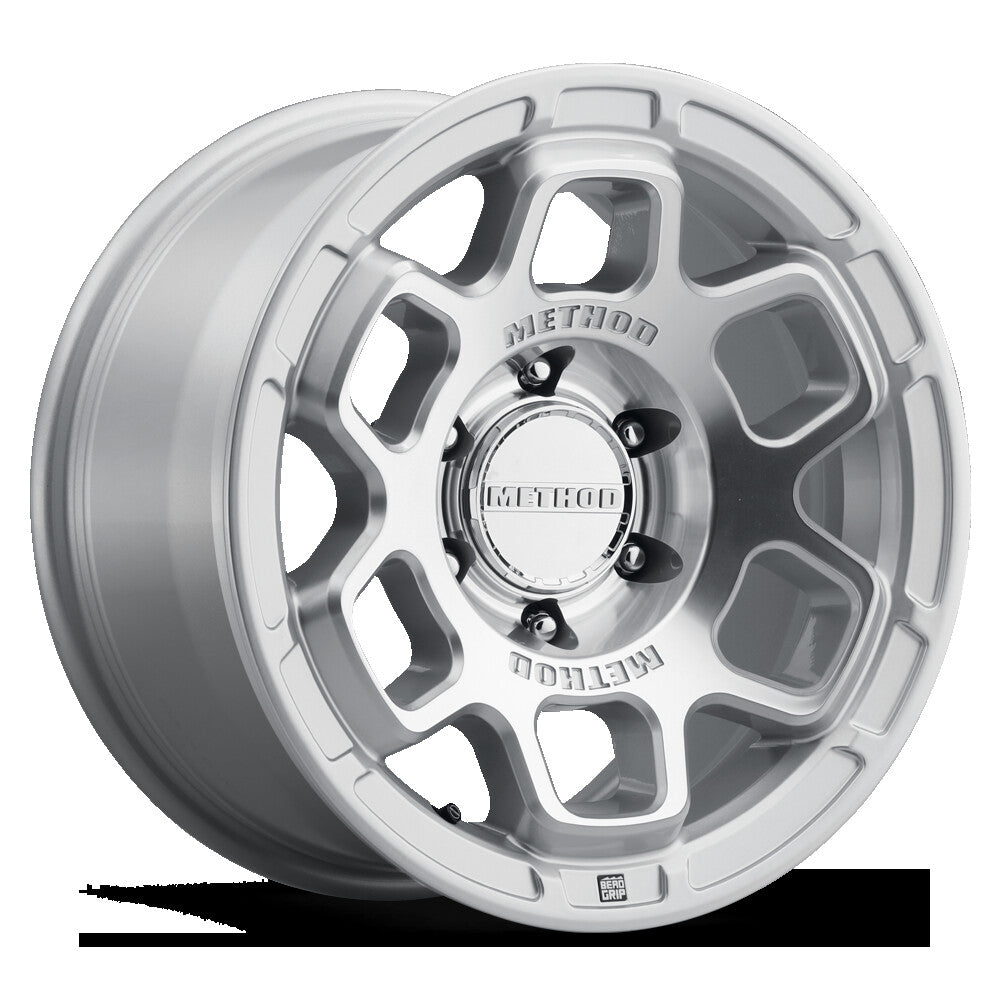

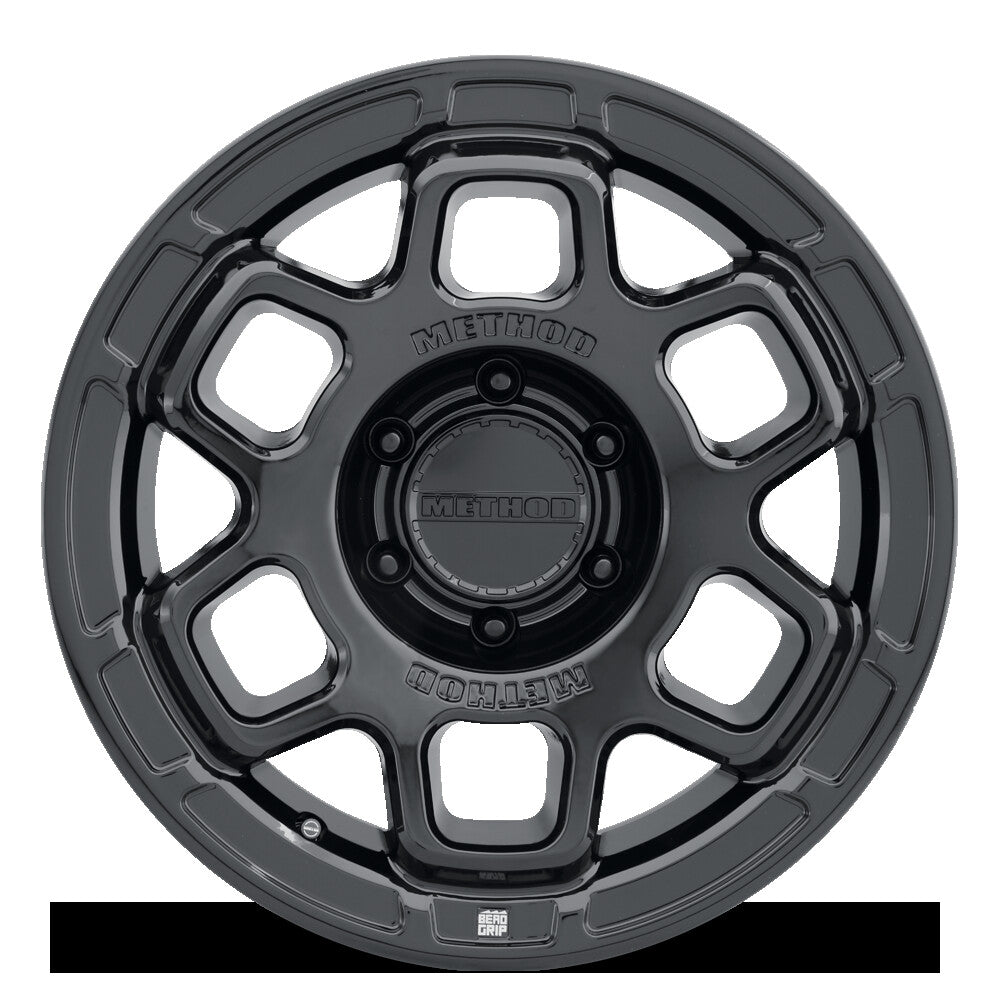

The 710 HD combines patented Bead Grip Technology, motorsports engineering and industry leading heavy duty strength to give you the confidence to tackle heavier loads, harder impacts, and tougher terrain.
Features and Benefits:
- Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
- Solid A356 aluminum with T6 heat treatment construction
- Rugged, yet refined, 6 windowed spoke design with debossed Method logos
- Recessed pockets in outer lip with Bead Grip badge inset on lip
- Aggressive safety hump on bead seats further prevents debeading
- Reinforced inner lip taken from Mrw race wheel increases strength
- Black or Chrome Snap-in center cap with embossed Method logo - including 8 lug
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Heavy Duty (HD) 3310 lbs. and 4500 lbs. load ratings for maximum payload
Details:
- Series: TRAIL (7XX)
- Model: MR710 HD Bead Grip
- Wheel Diameter Inch: 18 Inch
- Wheel Width Inch: 9 Inch
- Bolt Pattern: 6x135
- Bolt Hole: 6
- Bolt Diameter: 135
- Offset mm: 12 mm
- Backside Spacing Inch: 5.5 Inch
- Hub Bore mm: 87 mm
- Wheel Weight LBS: 39.7272996457149 LBS
- Max Load LBS: 3310 LBS
- Color/Finish: Gloss Black
- Application: 18x9, 6x135, 12 OS, 3310 lbs
- Cap Part: CP-MRWBG86S-GB
- Cap Type: Snap In
- Hub Centric Yes/No: Yes
- Lug Hole Diameter mm: 16.2 mm
- Lug Taper Angle: 60
- Mount Pad Diameter mm: 170 mm
- Spoke Depth At 90mm: 29.4
- Spoke Depth At 100mm: 43.9
- Spoke Depth At 120mm: 52.9
- Spoke Depth At 160mm: 67.9
- Inner Wheel Radius At 50mm: 222.3
- Inner Wheel Radius: 213
- Cap Bore mm: 82.65 mm
- Cap Clearance Height mm First Obstruction: 40.6
- Cap Clearance Height mm End Of Cap: 50
- Lip Size mm: 0 mm
- Lip Size Inch: 0 Inch
- CBM: 0.0873758070000002
