Description

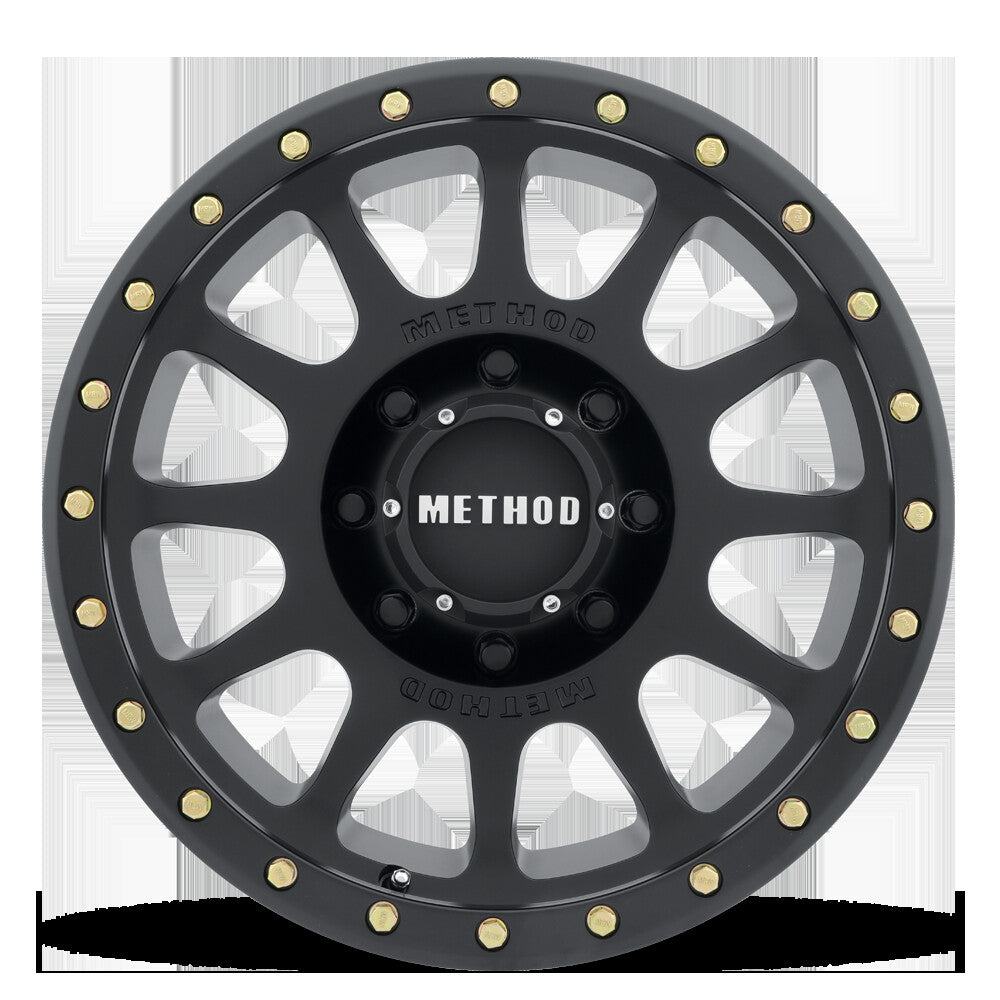

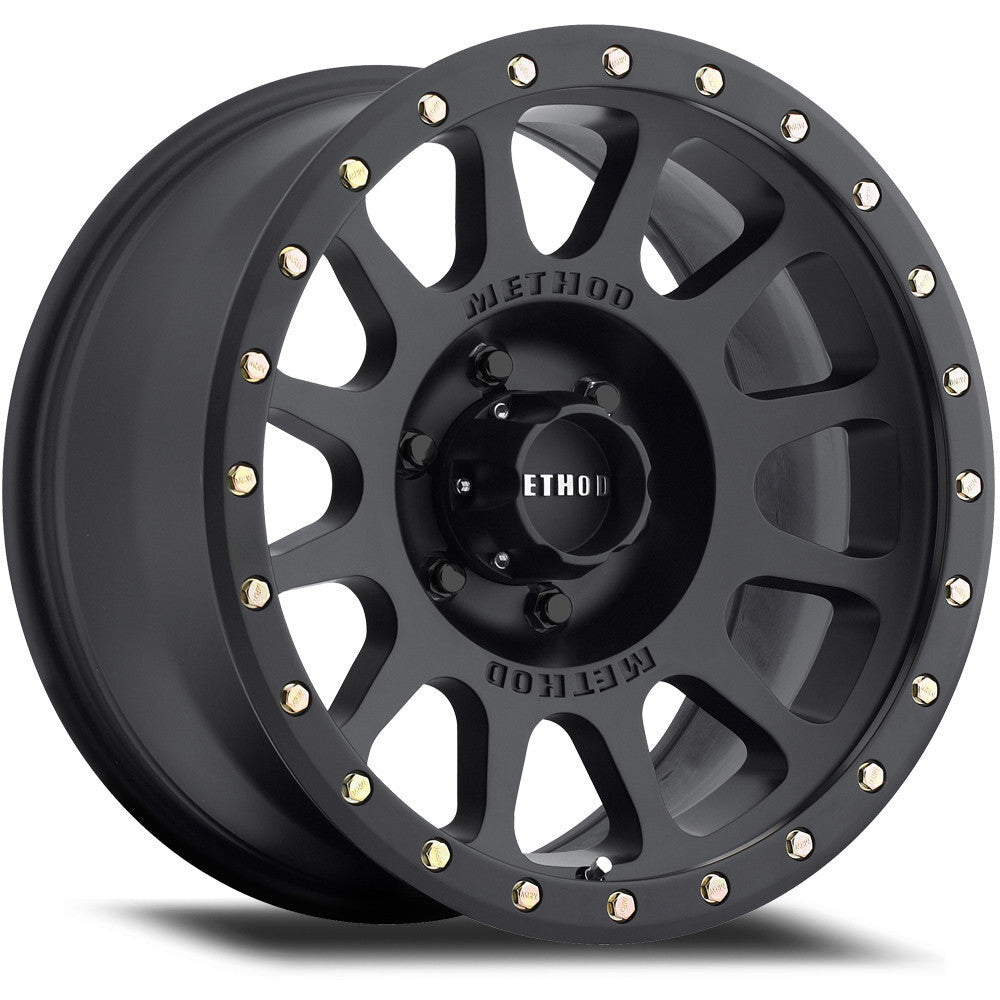

The 305 HD NV wheel features an iconic 12 window design with a debossed Method logo on either side of the center cap. The lip undercut simulates a true beadlock wheel and has replaceable lip bolts with optional colors available.
It boasts a Heavy Duty load rating of 4,500 LBS to handle your larger hauls.
Features and Benefits:
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed Method logos
- Street-Loc V.1 lip with undercut simulates true beadlock wheel
- Replaceable Mrw lip bolts with optional colors available
- Push through center cap with embossed Method logo
- Flush cap appearance options available
- Industry’s best lifetime structural warranty
Details:
- Series: STREET (3XX)
- Model: MR305 NV HD
- Wheel Diameter Inch: 16 Inch
- Wheel Width Inch: 7 Inch
- Bolt Pattern: 6x5.5
- Bolt Hole: 6
- Bolt Diameter: 5.5
- Offset mm: 0 mm
- Backside Spacing Inch: 3.98 Inch
- Hub Bore mm: 108.3 mm
- Wheel Weight LBS: 24.6697271384878 LBS
- Max Load LBS: 3640 LBS
- Color/Finish: Matte Black
- Application: 16x7, 6x5.5, 0 OS, 3640 lbs
- Cap Part: CP-1717B114-82
- Cap Type: Push Thru
- Replacement Cap O-Ring: OR-044
- Accessory Bolt PN: BT-BOLT ZINC
- Hub Centric Yes/No: No
- Lug Hole Diameter mm: 16.2 mm
- Lug Taper Angle: 60
- Mount Pad Diameter mm: 178 mm
- Spoke Depth At 90mm: 3
- Spoke Depth At 100mm: 25
- Spoke Depth At 120mm: 40
- Spoke Depth At 160mm: 48
- Inner Wheel Radius At 50mm: 195
- Inner Wheel Radius: 188
- Cap Bore mm: 106.8 mm
- Lip Size mm: 17 mm
- Lip Size Inch: 0.67 Inch
- CBM: 0.0611523235645276
