Description
Expertly designed to handle all the demands of trophy truck off-road racing.
Forged aluminum construction for ultimate strength, combined with beadlock and Method's patented Bead Grip technology, the new 207 Forged Beadlock is the premium wheel for RWD and AWD trophy trucks.
Details:
- Series: FORGED (2XX)

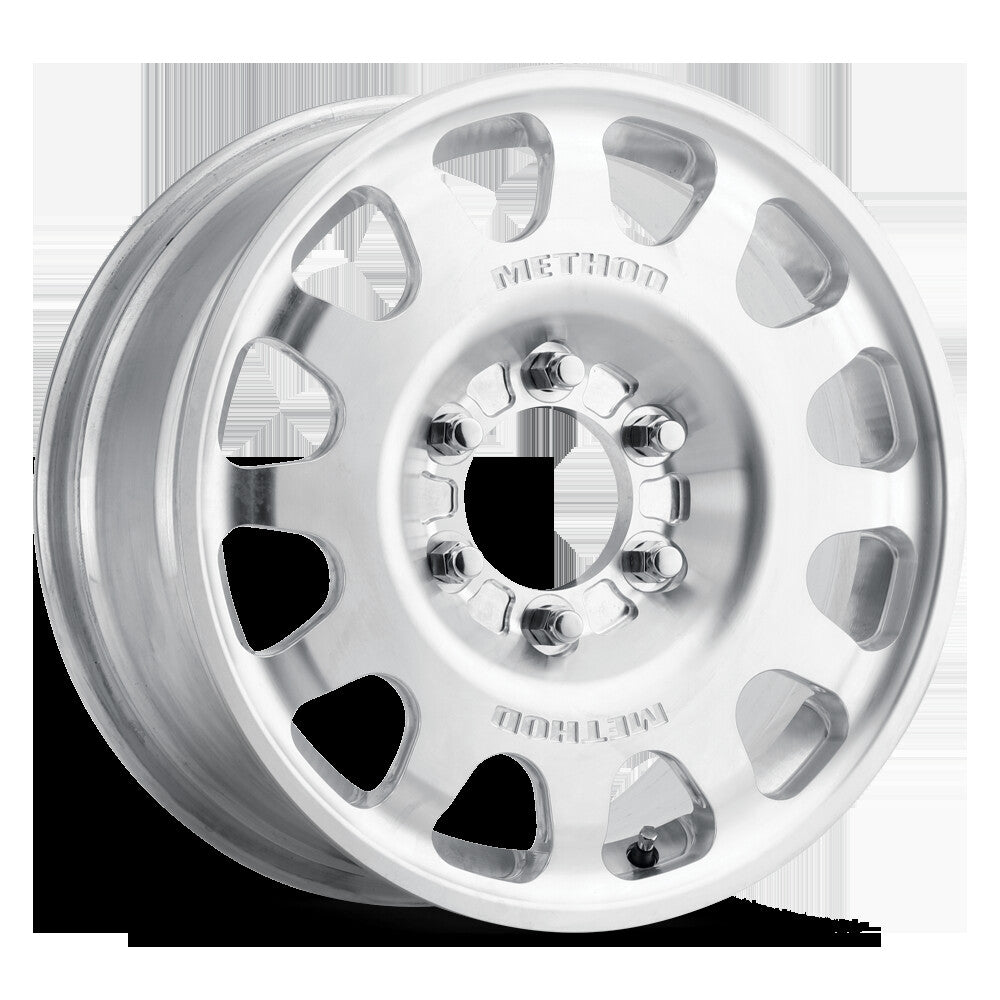

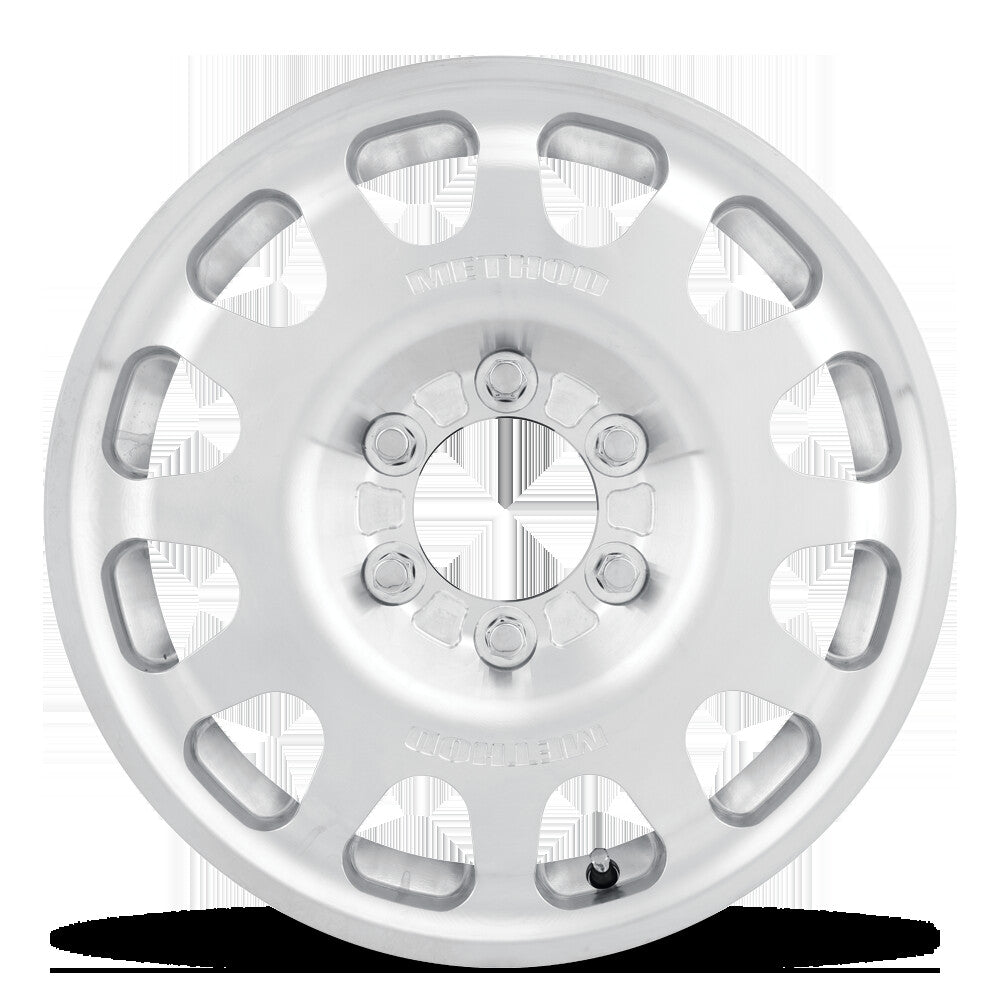

- Model: MR207 Beadlock
- Wheel Diameter Inch: 18 Inch
- Wheel Width Inch: 9.5 Inch
- Bolt Pattern: 6x6.5
- Bolt Hole: 6
- Bolt Diameter: 6.5
- Offset mm: -18 mm
- Backside Spacing Inch: 4.74 Inch
- Hub Bore mm: 108.71 mm
- Wheel Weight LBS: 42.62 LBS
- Max Load LBS: 4000 LBS
- Color/Finish: Machined - Raw
- Application: 18x9.5, 6x6.5, -18 OS, 4000 lbs
- Cap Type: None
- Hub Centric Yes/No: No
- Lug Hole Diameter mm: 18.3 mm
- Lug Taper Angle: 90
- Mount Pad Diameter mm: 205 mm
- Spoke Depth At 90mm: 0
- Spoke Depth At 100mm: 0
- Spoke Depth At 120mm: 50
- Spoke Depth At 160mm: 68.9
- Inner Wheel Radius At 50mm: 222
- Inner Wheel Radius: 220
- Lip Size mm: 46 mm
- Lip Size Inch: 1.81 Inch
- CBM: 0.0909711916920003
