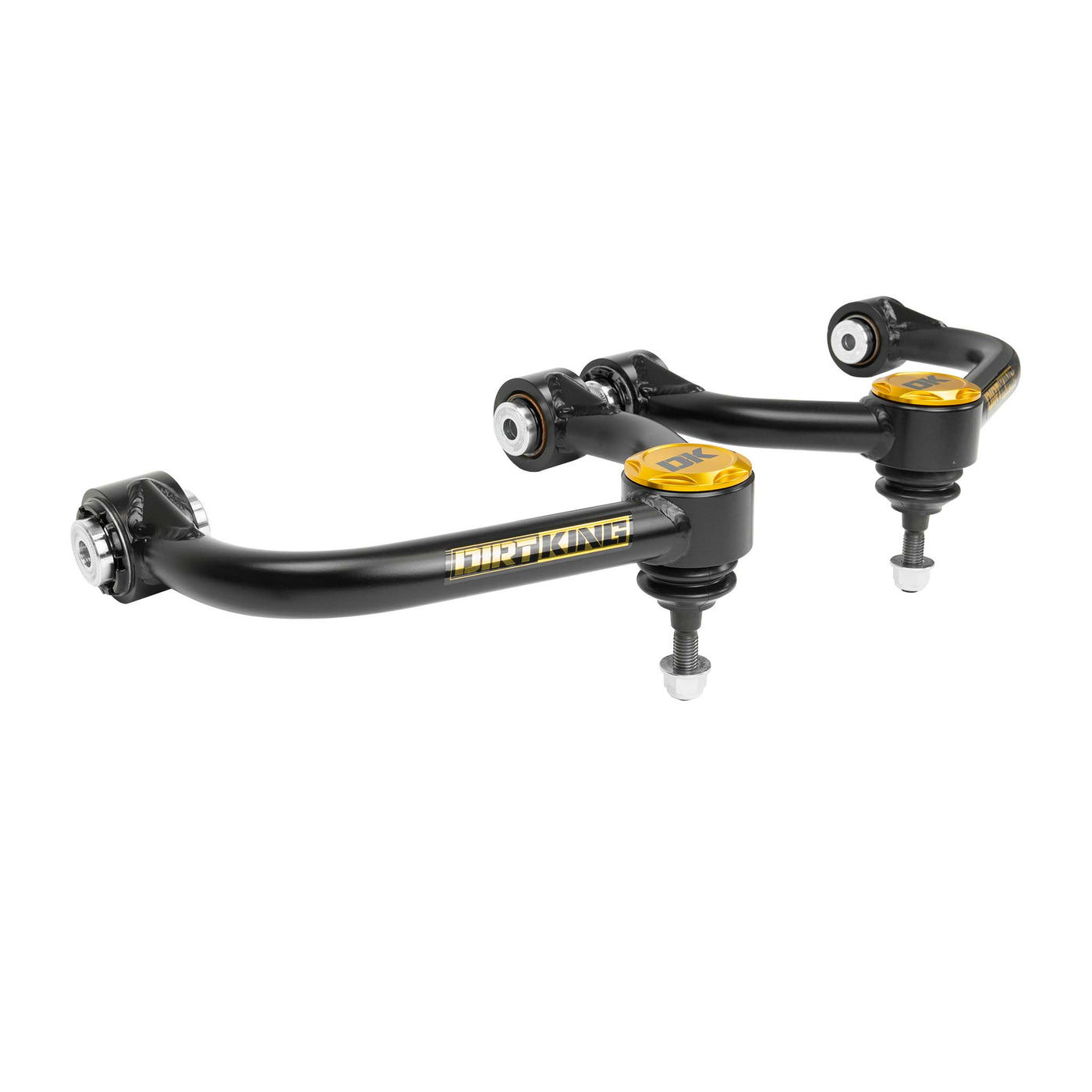

Dirt King 4130 Upper Control Arms 2004-2020 Ford F-150

PRODUCT DESCRIPTION

Dirt King 4130 Upper Control Arms – Built to Solve Real Problems

If you drive a 2004–2020 Ford F-150 and you're ready for a suspension upgrade, these 4130 UCAs are for you. We made them to tackle the exact issues we kept running into ourselves—squeaky bushings, joints that need constant attention, and geometry thrown off as soon as you add a lift. Whether you’re daily driving, overlanding, rock crawling, or chasing desert trails, these UCAs handle it all.

These arms feature maintenance-free SilentSpin™ bushings that eliminate grease fittings and unwanted noise, along with heavy-duty Probearing Pro 4 ball joints for high articulation and superior strength. The ball joints are sealed to block out debris and finished with anodized caps. Built to maintain proper alignment from 0–3" of lift, these arms also add roughly an inch of down travel compared to stock—a must-have when paired with our shocks or other aftermarket coilovers like King, Fox, Icon, and more.

Why Go Dirt King?

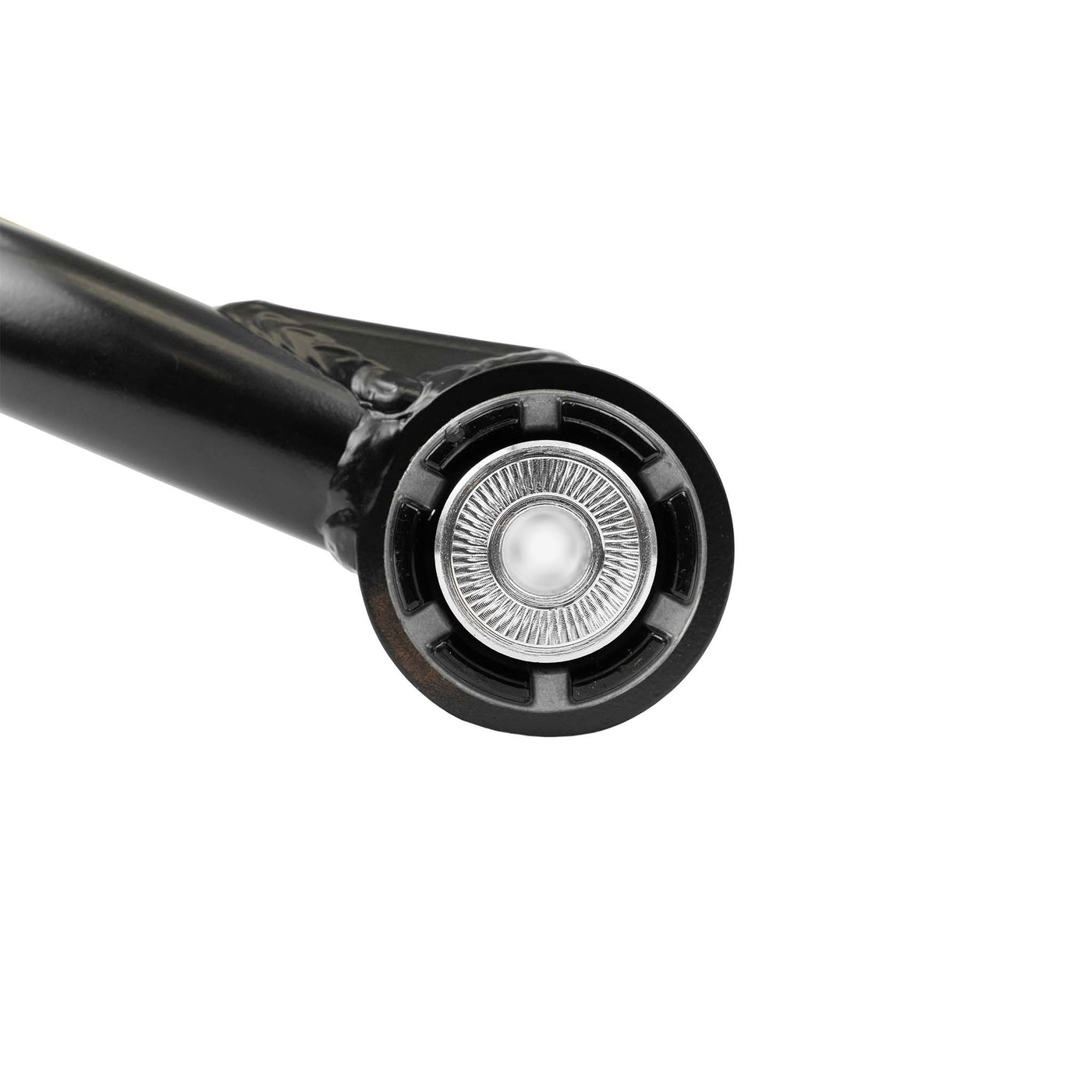

SilentSpin™ bushings — no squeaks or maintenance

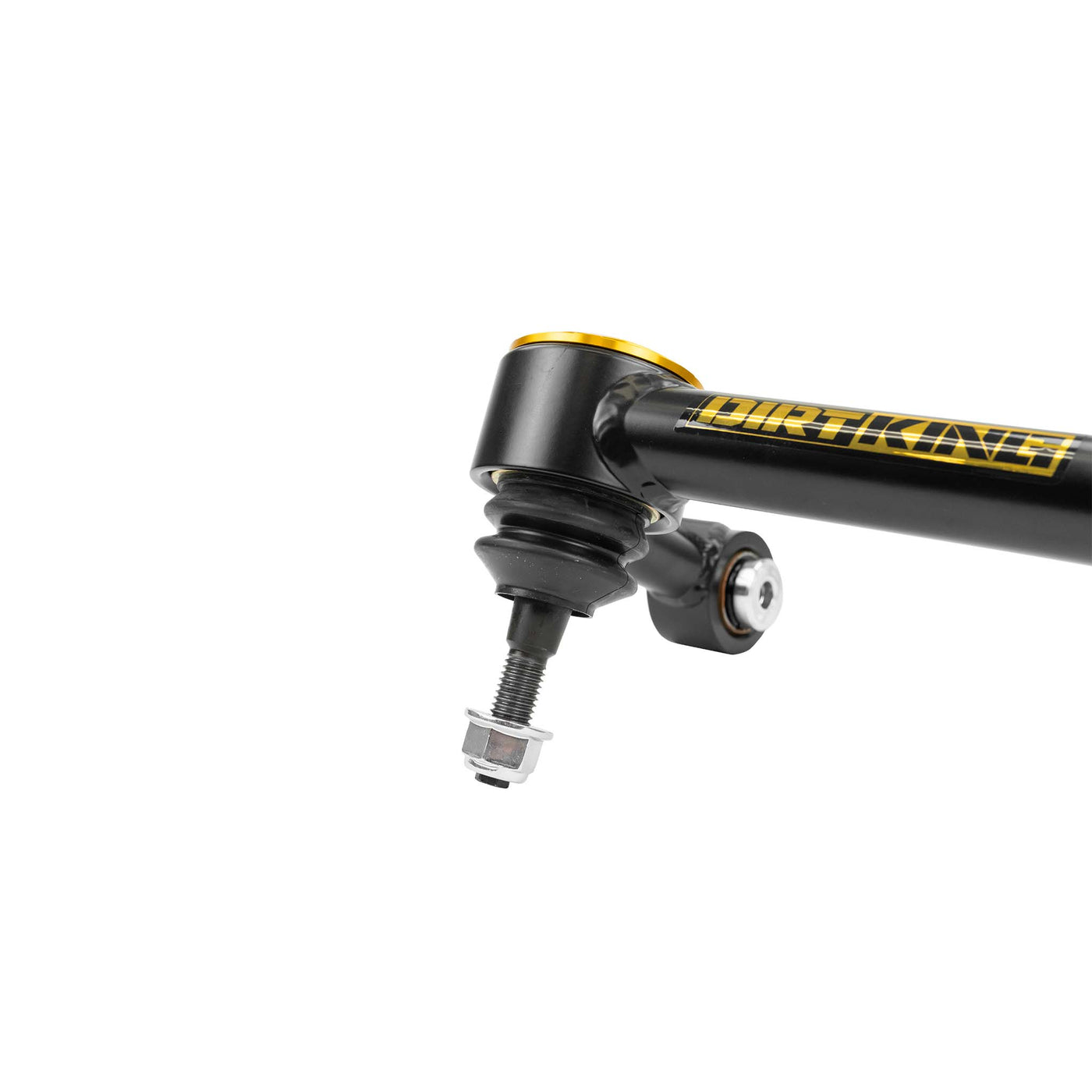

Pro 4 ball joints with sealed dust caps
Rebuildable, USA-made construction
Precision-welded 4130 chromoly tubing
Shipped preassembled for faster installs

Upgrade Your F-150 With Confidence
Built and tested in the USA, these 4130 UCAs are engineered for the long haul—perfect for rigs that work hard on weekdays and explore even harder on weekends. It’s the last set of upper control arms you’ll ever need.

Specifications
Amount of Lift: Allows for 0–3” of lift
Track Width: Stock
Maximum Backspacing: 4.75”
Minimum Rim Size: 17”
Weight: 21 lbs
Dimensions: 18.25 × 15 × 8

Note: Do not install with coil spacers combined with extended-length aftermarket shocks.

What's Included
4130 Chromoly upper control arms
Probearing SilentSpin bushings
Heavy-duty Probearing ball joints
Ball joint caps
Upper control arm bolts
Dirt King sticker pack
Features
CAD Designed – Engineered for optimal performance and durability
SilentSpin Bushings – Maintenance-free and engineered for quiet, smooth articulation
Pro 4 Series Ball Joints – High-strength, sealed design for maximum reliability
4130 Chromoly Construction – Built with precision-welded tubing and reinforced gussets
Formed Steel Bushing Gussets – Adds strength and rigidity under heavy load
Preassembled – Delivered ready to install for faster setup
Zinc-Plated Hardware – Corrosion-resistant for long-term protection
Durable Black Powder Coat – Resistant to harsh environments
Professionally MIG Welded – Ensures structural integrity for extreme off-road conditions
Made in the USA – Designed, built, and tested locally for trusted performance
Instructions

Compatibility

2004–2008 Ford F-150 2WD / 4WD
2009–2013 Ford F-150 2WD / 4WD
2015–2020 Ford F-150 2WD / 4WD

*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
