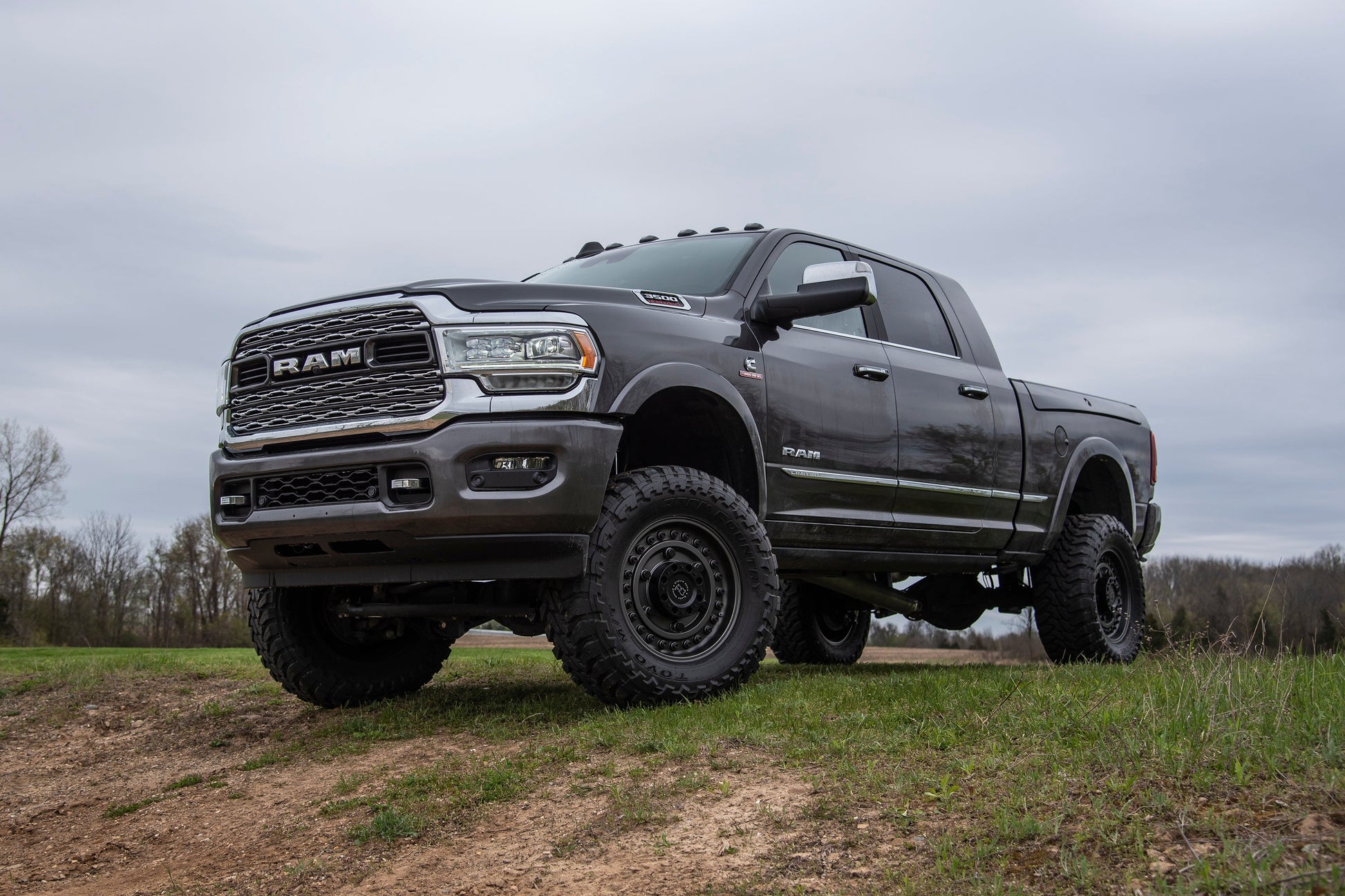

6 Inch Lift Kit W/ 4-Link | Ram 3500 W/ Rear Air Ride (19-23) 4WD | Diesel

6 Inch Lift Kit W/ 4-Link | Ram 3500 W/ Rear Air Ride (19-23) 4WD | Diesel

BDS

Regular price $3,145.05
Regular price Sale price $3,145.05
Sale Sold out

SKU:BDS1732FS

Discount available for Military and First Responders

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?
View full details

PRODUCT DESCRIPTION

Up the ante of your RAM 3500 diesel truck equipped with factory rear air ride to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes high strength steel lift blocks along with add-a-leaf springs, heavy duty air bag spacers, u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Features & Benefits

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 18 x 9 and 5.625 in. Backspace
  • 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Indexing Ring Option

6 Bolt Indexing Ring

  • Kits come standard with 6-Bolt indexing ring kit.

8 Bolt Indexing Ring

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
  • The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.

Shock Option

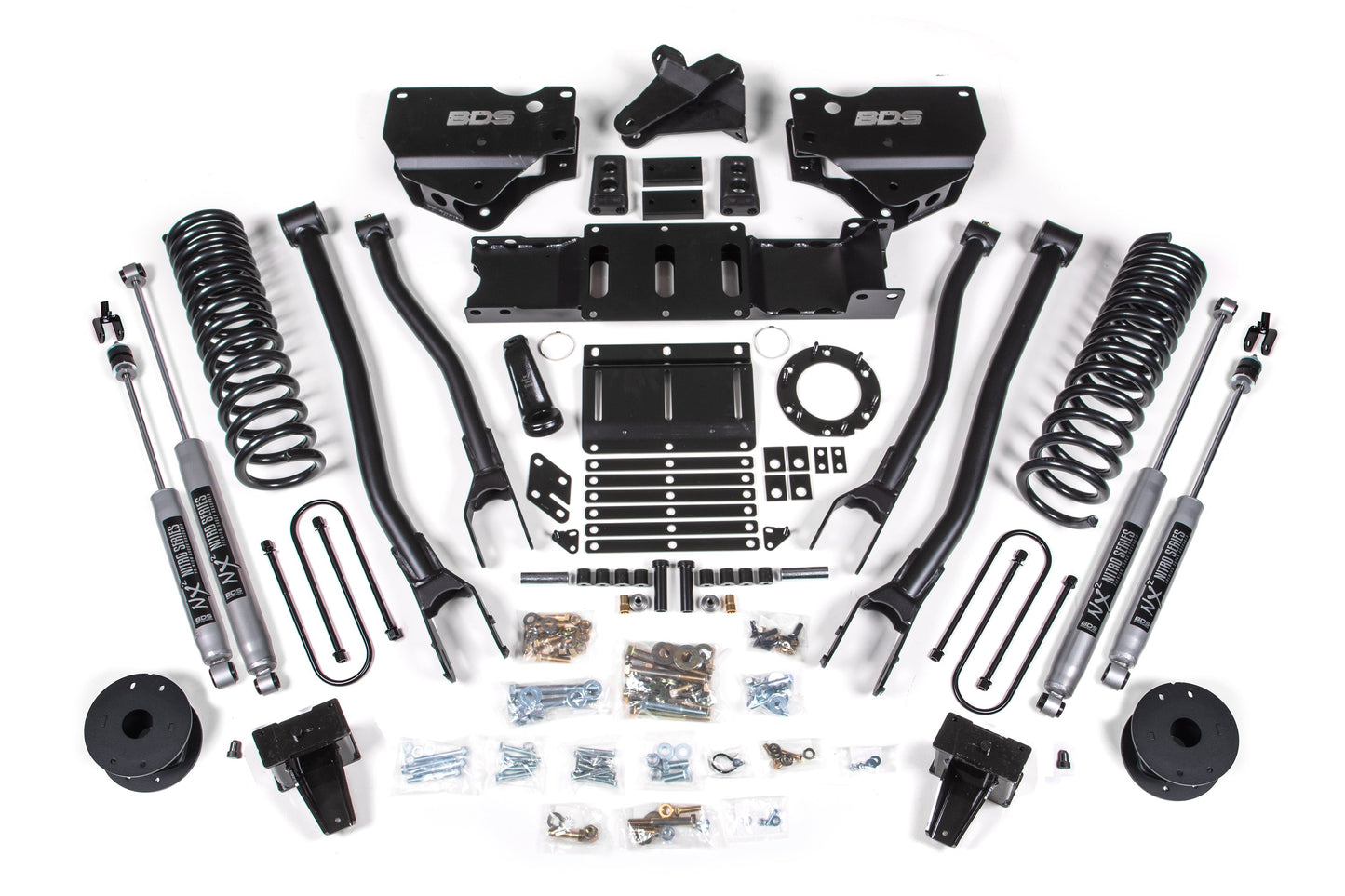

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

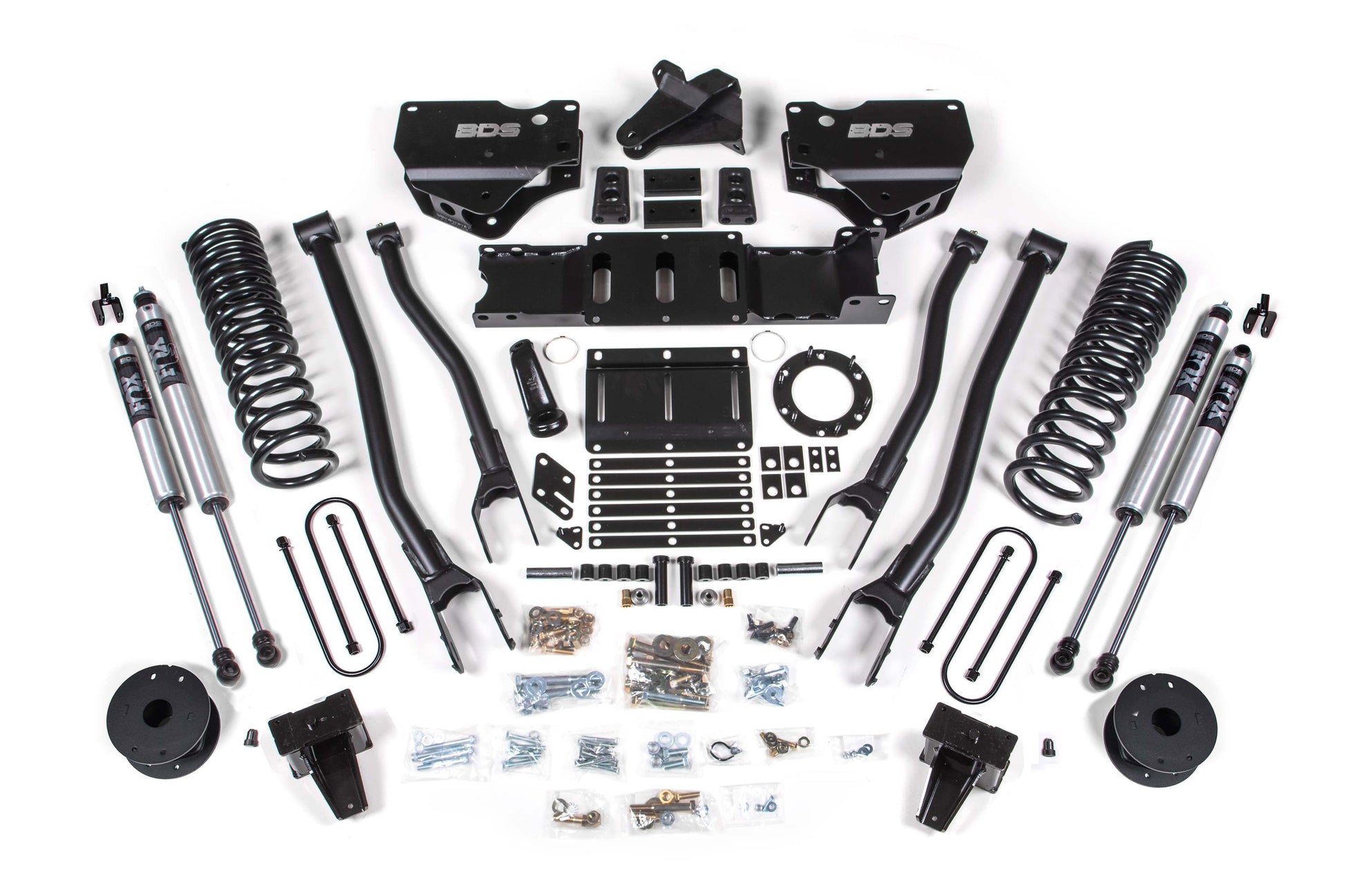

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
