4 Inch Lift Kit | Ram 1500 W/ Air Ride (19-22) 4WD

4 Inch Lift Kit | Ram 1500 W/ Air Ride (19-22) 4WD

BDS

Regular price $2,669.60
Regular price Sale price $2,669.60
Sale Sold out

SKU:BDS1697FS

Discount available for Military and First Responders

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?
View full details

PRODUCT DESCRIPTION

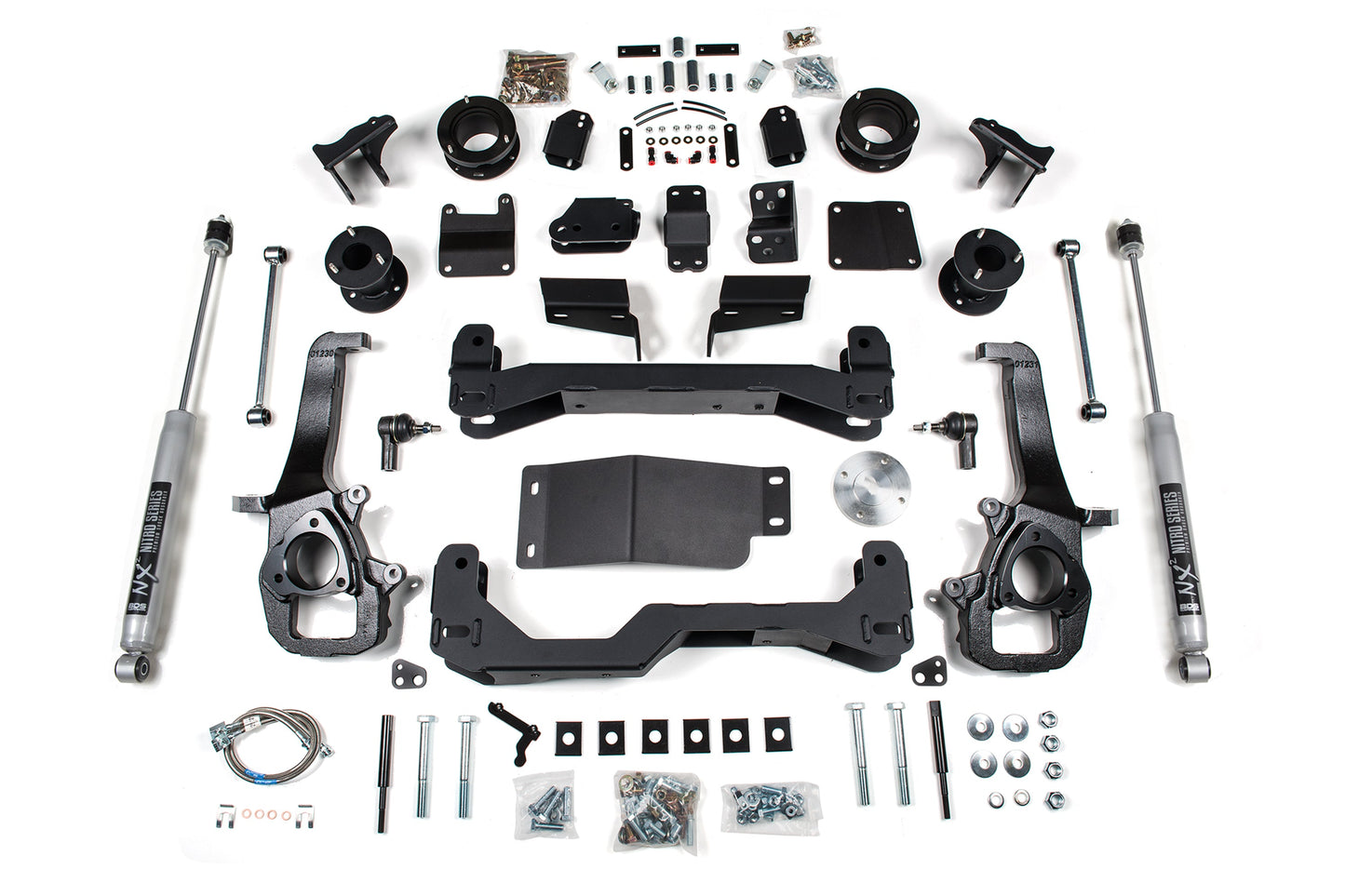

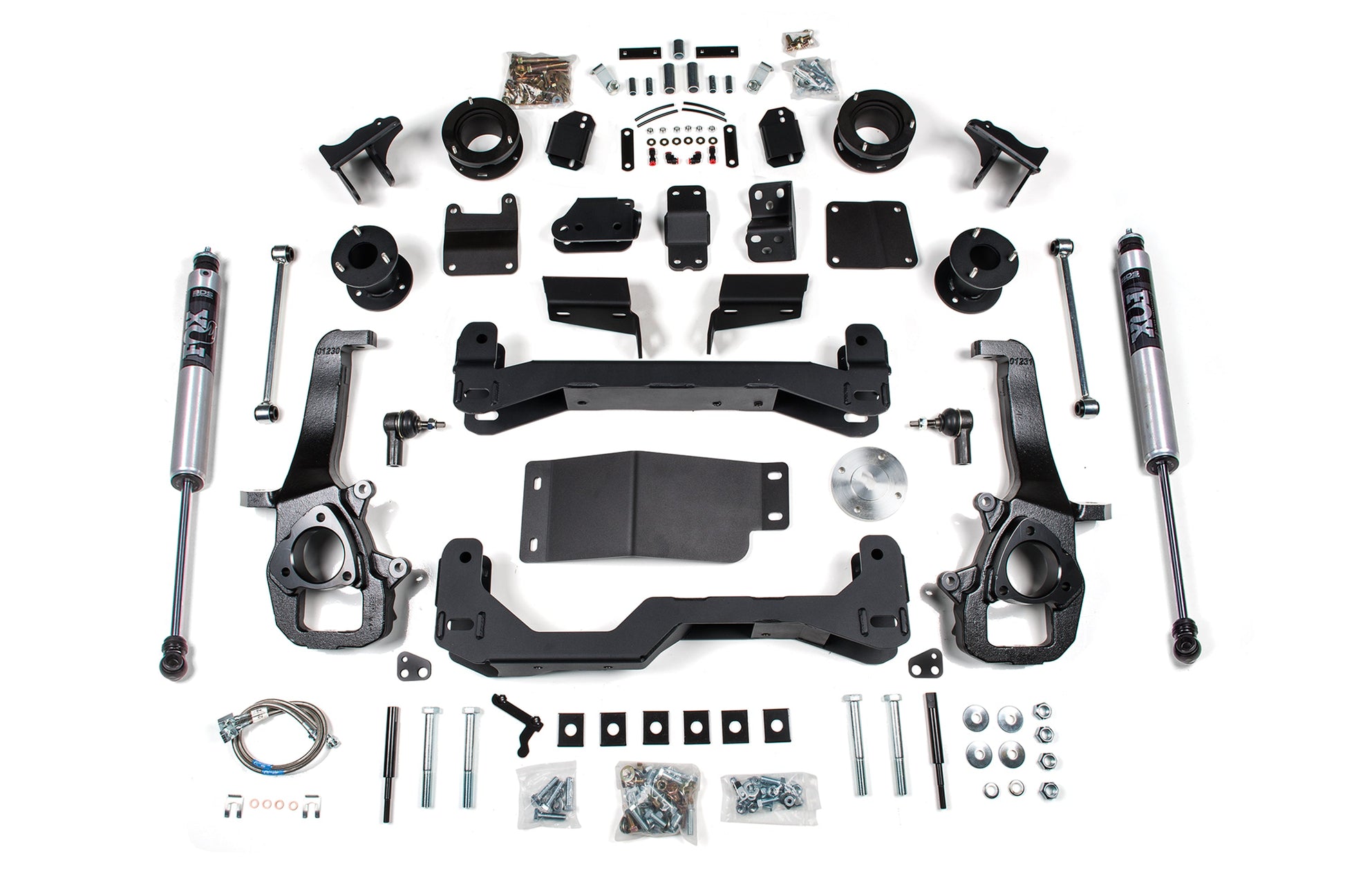

BDS steps up the performance and capability of the 2019-2022 RAM 1500 trucks, equipped with factory rear air ride, with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes top mounted air bag spacers, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Also, new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

OE Knuckle Type

RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
