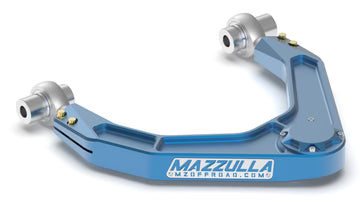

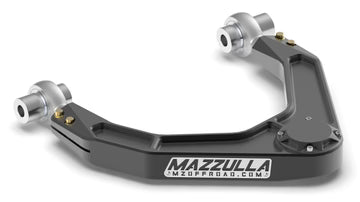

2010-2014 FORD RAPTOR BILLET UPPER CONTROL ARMS

2010-2014 FORD RAPTOR BILLET UPPER CONTROL ARMS

MAZZULLA OFFROAD

Regular price $1,549.00
Regular price Sale price $1,549.00
Sale Sold out

SKU:MZS-F1-1

Discount available for Military and First Responders

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?
View full details

PRODUCT DESCRIPTION

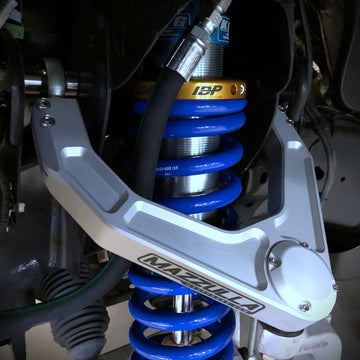

These billet machined uniball upper control arms are the ultimate performance, strength and durability gain for the front of your Ford Raptor. In a lifted application the upper control arms need corrected camber and caster geometry so that the factory alignment can be achieved. When adding aftermarket extended travel coilover shocks you will need more angularity in the upper control arm outer suspension pivot and these large 1.25" uniball bearings offer more clearance as well as an increased strength and longevity of the joint. The heim joint spacers and uniball pins are made using heat treated stainless steel and hold a tolerance .0005" for maximum fitment on bearing bores and factory upright tapers. These arms are machined in low volume using USA materials and the attention to detail are second to none. The combination of the upper control arm and a shock will yield improved handling characteristics, strength for offroad use and 40% increased wheel travel while maintaining the stock track width and suspension mounting locations. Ease of installation, high quality billet control arms and a race style shock absorber make this setup a great choice for anyone wanting to go fast in the dirt.
Features:
  • CAD designed and engineered
  • Manufactured in the USA
  • Billet machined 6061 aluminum construction
  • FK Teflon lined 1.250" uniballs
  • FK 7/8 "Heim Joint inner pivots
  • Stainless steel hardware
  • Aircraft grade 12 point pin hardware
  • 17-4 heat treated stainless steel pins and spacers
  • O-ring sealed uniball cover
  • Maximum alignment capability compared to stock
  • Improved geometry for lifted applications
  • Silver anodize finish

    Application Notes:

    • Recommended wheel backspace is 4.75"
