Description
Specifications
Wheel Travel: Additional 1” of travel compared to stock
Amount of Lift: Allows for 0-3” of lift
Track Width: Stock
Maximum Backspacing: 5”
Minimum Rim Size: 16”
Coil over Shock Size:Factory or OEM replacement coilovers
Wheel Travel / Lift
The upper control arms must be paired with OEM replacement coil overs to lift the vehicle. They offer an additional 1” of down travel compared to the stock upper control arms. These arms are compatible with King, Fox, Bilstein, ADS and Icon coil overs. Do not install these upper control arms with coil spacers that over articulate the suspension.
Tire Info
The upper control arms will allow for 35” tires but the front section of the cab mount may need to be cut to avoid tire rubbing while turning. In addition the front bumper may require trimming for proper tire clearance.

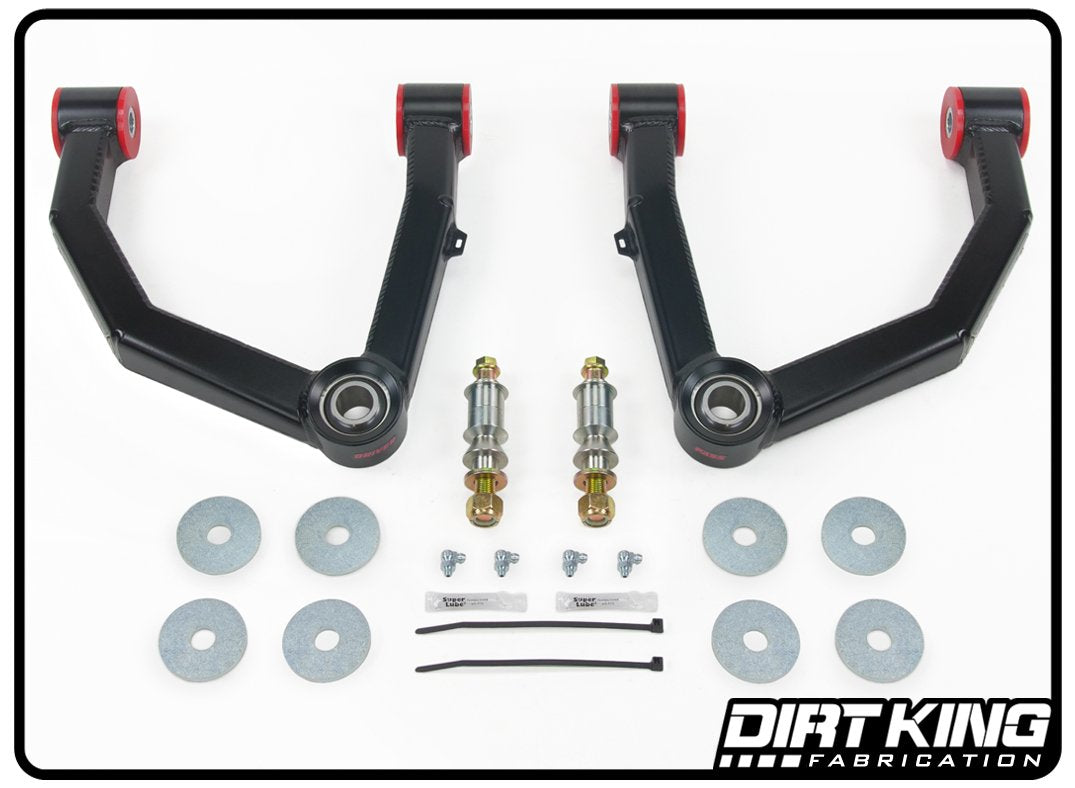

What's Included
Boxed plate upper control arms
Urethane bushings
Grease fittings
1” FK uniballs
17-4 stainless steel misalignment spacers
Military grade F911 hardware
Zinc plated bushing washers
Zinc plated inner bushing sleeves
Durable black powder coat
Dirt King sticker pack
Installation instructions
Features
CAD designed
Boxed plate construction
4130 chromoly uniball cups
Brushed stainless steel logo plates
Preassembled for fast installation
Grease fitting ports for easy servicing
Zinc plated components for corrosion resistance
Professionally MIG welded
Proudly made in the USA
