Description
Bolt-on performance lift kit package. Built for better off-road suspension handling and 2"-3" of lift capability.

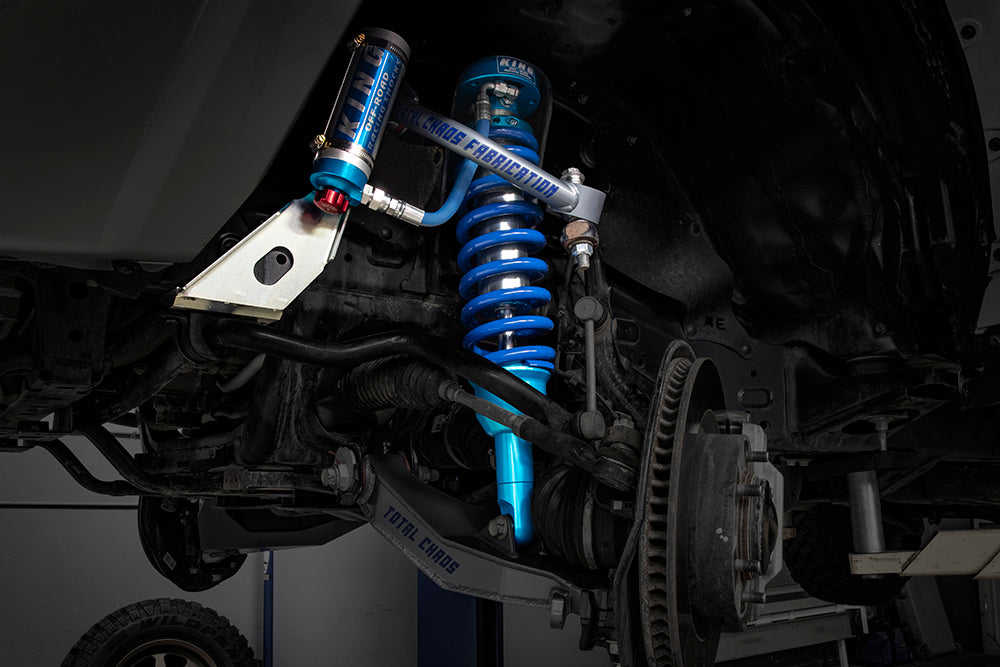

3.0" diameter coilovers have been upgraded with 600lb coil springs in order to achieve proper lift height and optimum ride quality.
3.0" diameter 2-tube external bypass rear shocks feature external reservoirs and compression and rebound adjustment for maximum tunability.
Extended travel shocks packaged with uniball upper control arms add 1" of additional droop wheel travel.
UCAs are designed with added caster to aid in retaining factory alignment specs. This reduces the darting or wandering in the vehicle's steering when the lift kit is installed.
Remote reservoirs provide optimum cooling to reduce shock fading on long distance trips or in excessive heat from added vehicle accessory weight.
17" Wheel: 17" x 8.5" | 4.75" backspace Tire: 285/70R17

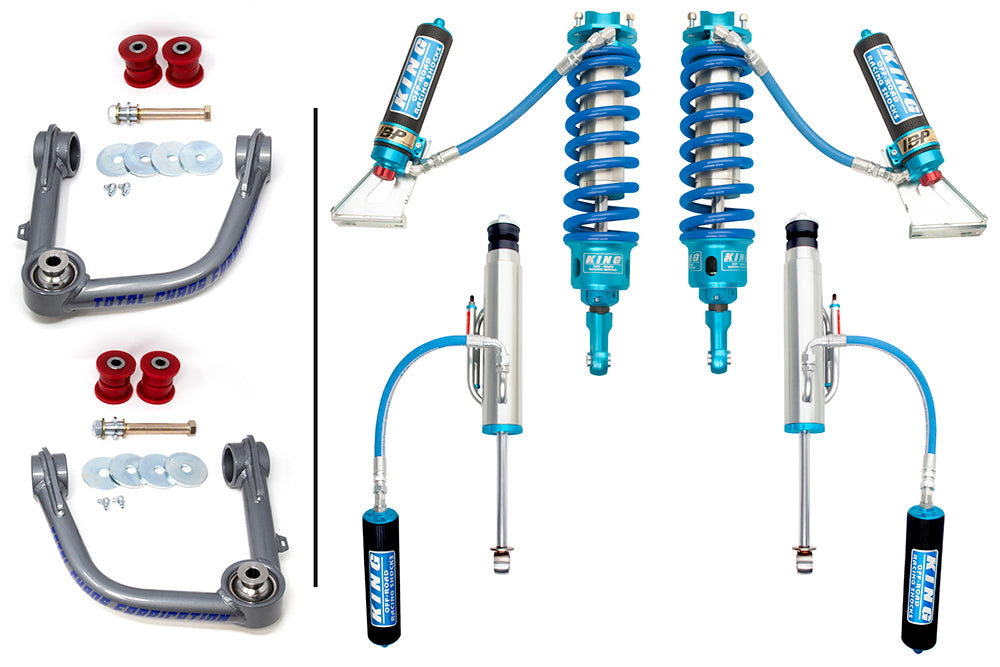

Parts Included:
UPPER CONTROL ARM KIT PN: 96504 - QTY: (1)
KING 3.0" FRONT EXTENDED TRAVEL INTERNAL BYPASS COILOVERS W/ REMOTE RESERVOIRS AND COMPRESSION ADJUSTERS (PAIR) PN: KNG-33700-124A - QTY: 1
KING 3.0" REAR SHOCKS 2-TUBE EXTERNAL BYPASS R/R (PAIR) PN: KNG-33000-125 - QTY: 1
