05-23 Toyota Tacoma Long Travel Spring Under Kit

05-23 Toyota Tacoma Long Travel Spring Under Kit

DIRT KING

Regular price $1,371.02
Regular price $1,399.00 Sale price $1,371.02
Sale Sold out

SKU:DK-811848

View full details

PRODUCT DESCRIPTION

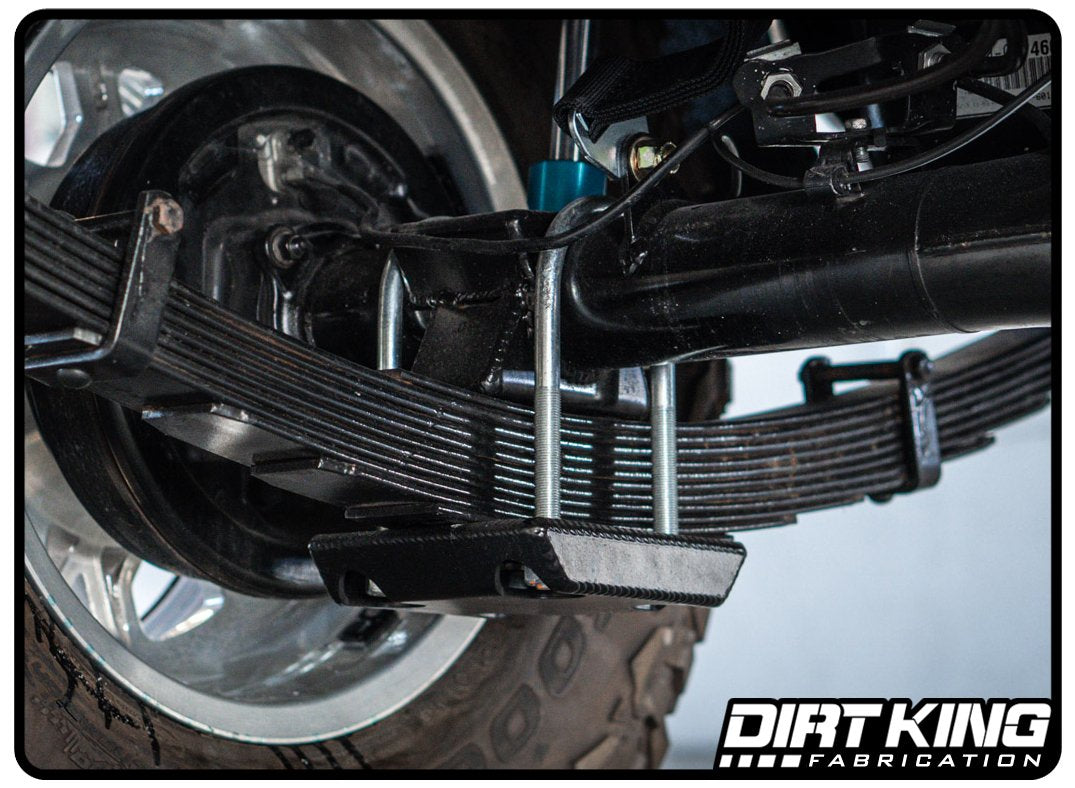

The long travel spring under kit was designed for maximum rear suspension performance without making the installation difficult for average person. For best results this kit should be combined with the Dirt King bedcage and Deaver H70HD leaf under springs. The complete package paired with a custom drive shaft allows for 18"" of usable travel. The factory drive shaft can be retained but will limit 2"" of down travel. Even with the 2"" travel loss it still achieves a respectable 16"" of wheel travel.

Specifications
Wheel Travel: 18""
Maximum Tire Size: 35”
Maximum Backspacing: 4.75”
Minimum Rim Size: 16”

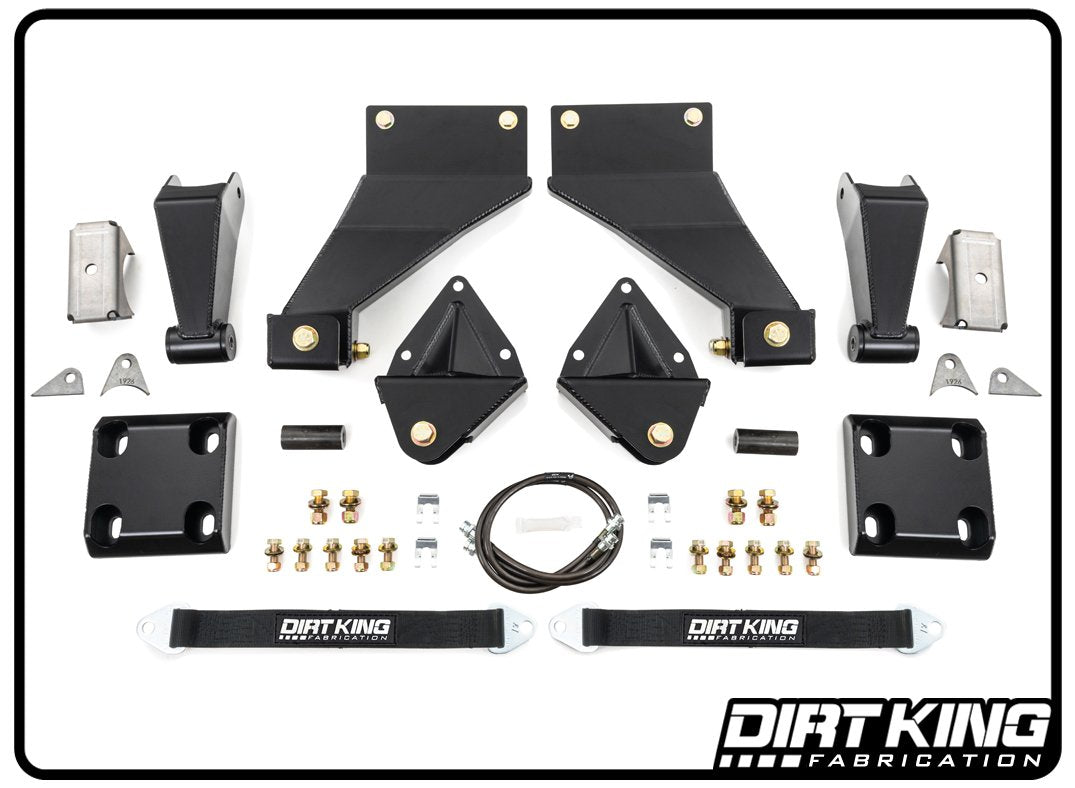

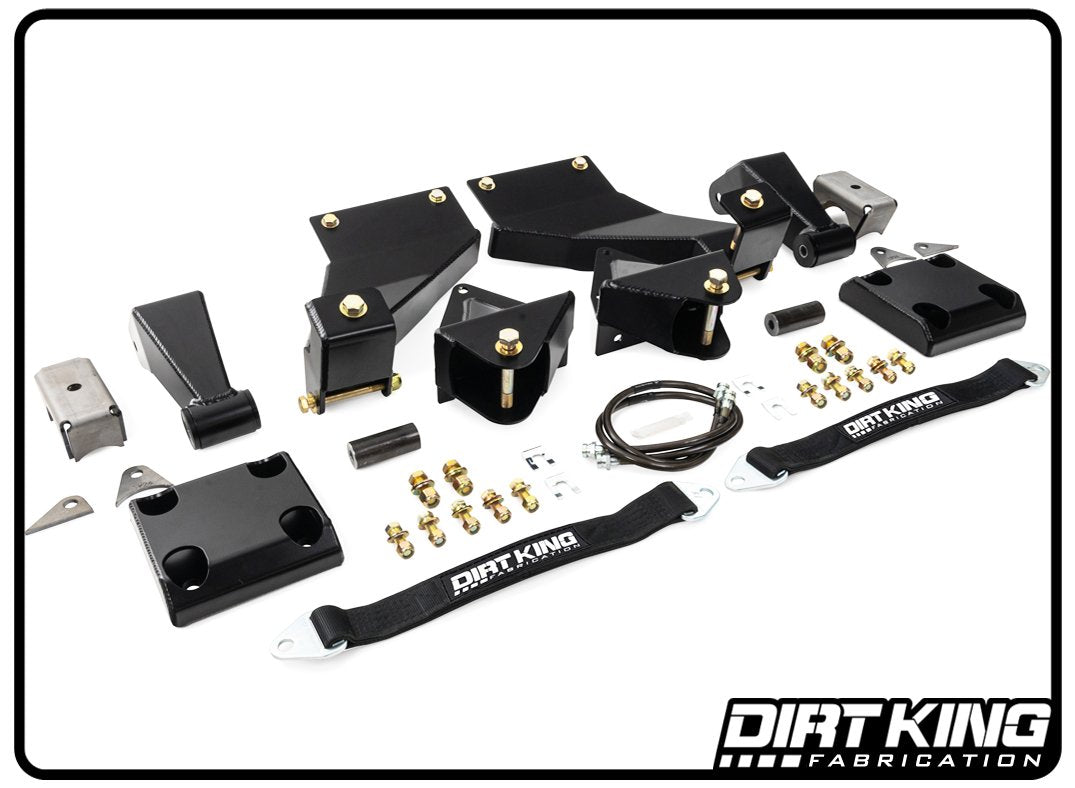

What's Included
Long travel shackles
Leaf under u-bolt plates
Leaf under front hangers
Rear shackle hangers
18"" quad wrapped limit straps
Weld on limit strap tabs
Leaf spring perches
DOT approved extended brake lines
Grade 8 mounting hardware
Features
Bolt on application, minimal modifications required
3/16"" and 1/8” boxed plate construction
Limit strap tabbing
