PRODUCT DESCRIPTION

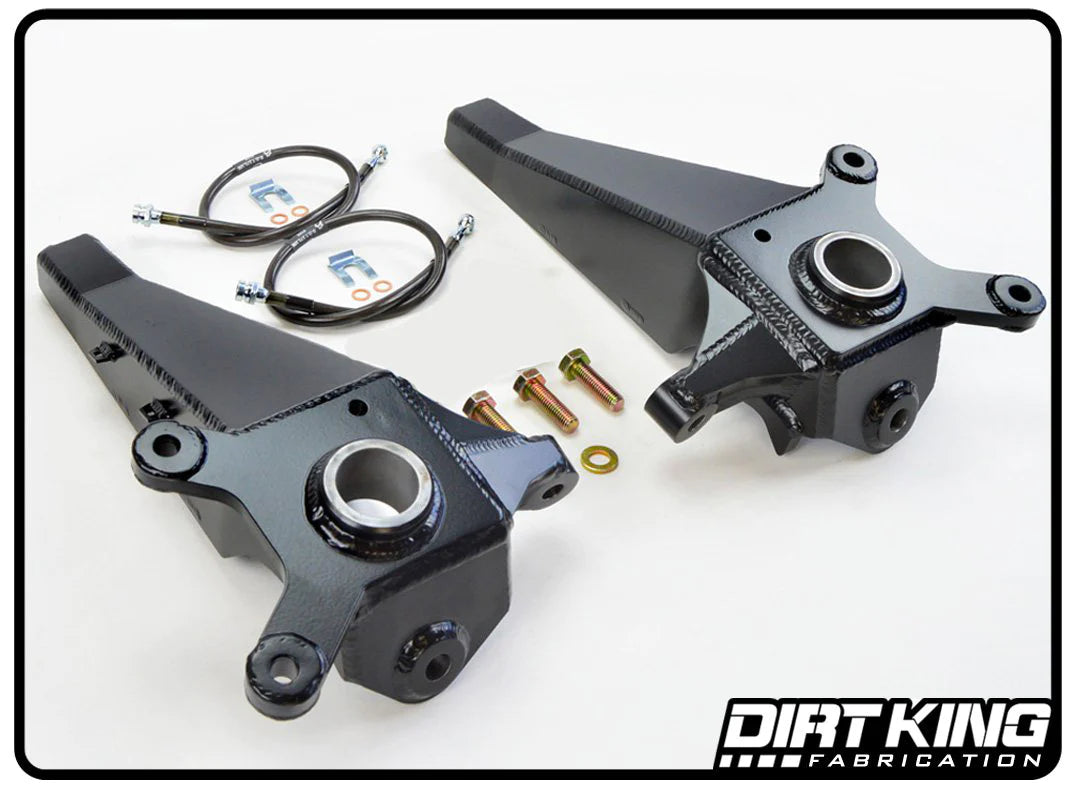

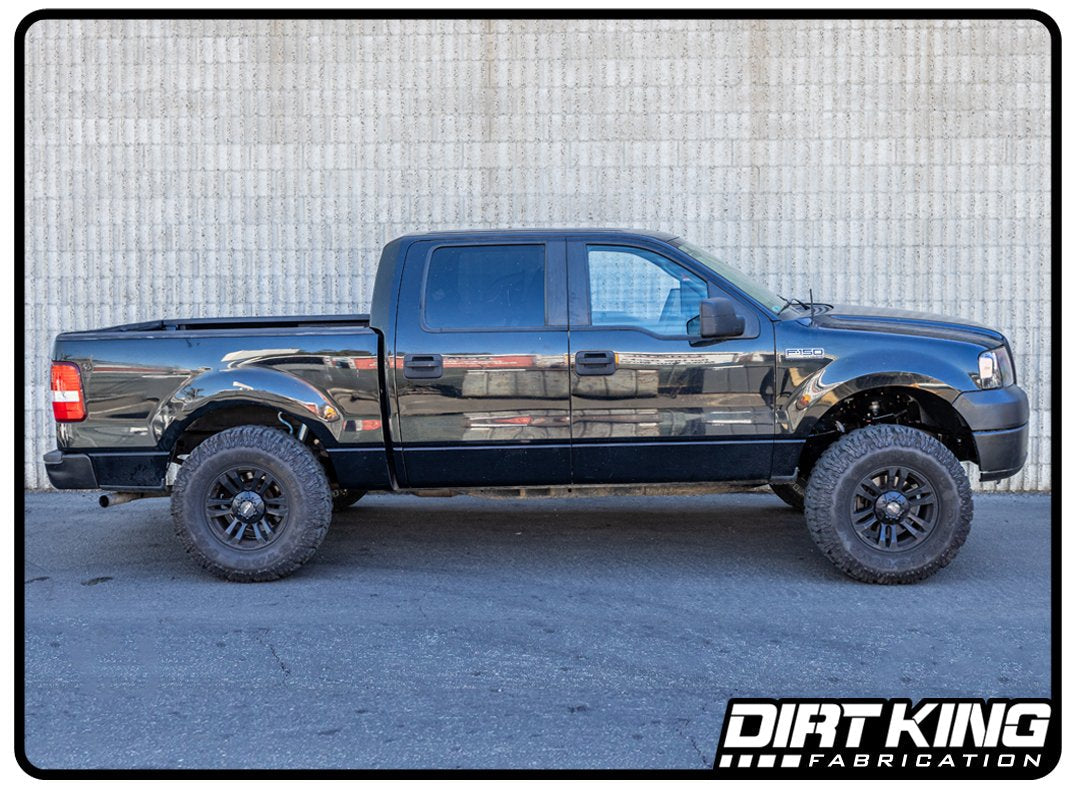

The Dirt King fabricated lift spindles raise the front end a true 3.5"" without compromising the ride quality. These spindles are currently the only lift spindles available for the F-150’s that accept both factory or aftermarket upper and lower control arms. The spindles are the CAD designed and constructed from 1/4"" thick steel plate. Included with the spindles is all necessary mounting hardware and detailed installation instructions.Specifications
Amount of Lift: 3.5”
Track Width: 1.75"" wider per side
Maximum Tire Size: 35”
Maximum Backspacing: 5.25”
Minimum Rim Size: 17”
Track Width
The Dirt King lift spindles increase the track width 1.75” per side. Due to the increased width wider fiberglass fenders may need to be installed.
Tire Info
If installing 35” tires modifications to the wheel wells and bumper may need to be made for proper tire clearance.

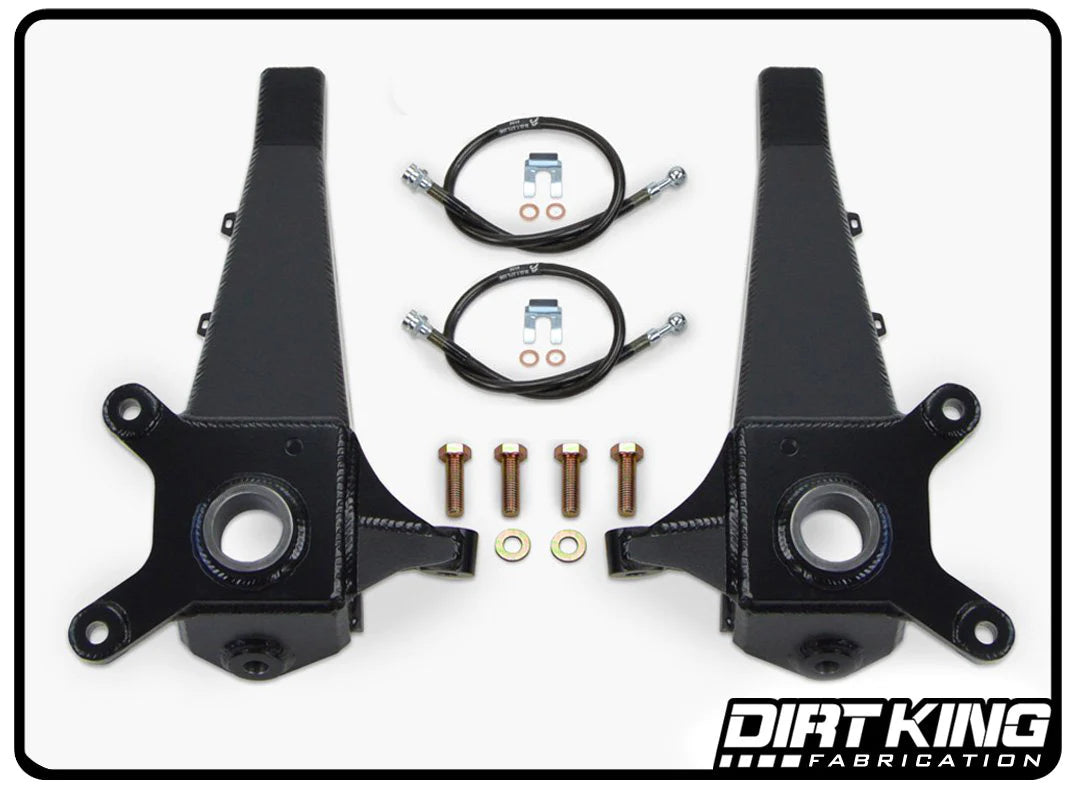

What's Included
Fabricated lift spindles
Extended DOT approved brake lines
Brake line mounting brackets
Grade 10.9 caliper mounting bolts
Upper control arm washers
Installation instructions
Features
Direct bolt on application
CAD designed
Professionally MIG welded
Proudly made in the USA
Instructions

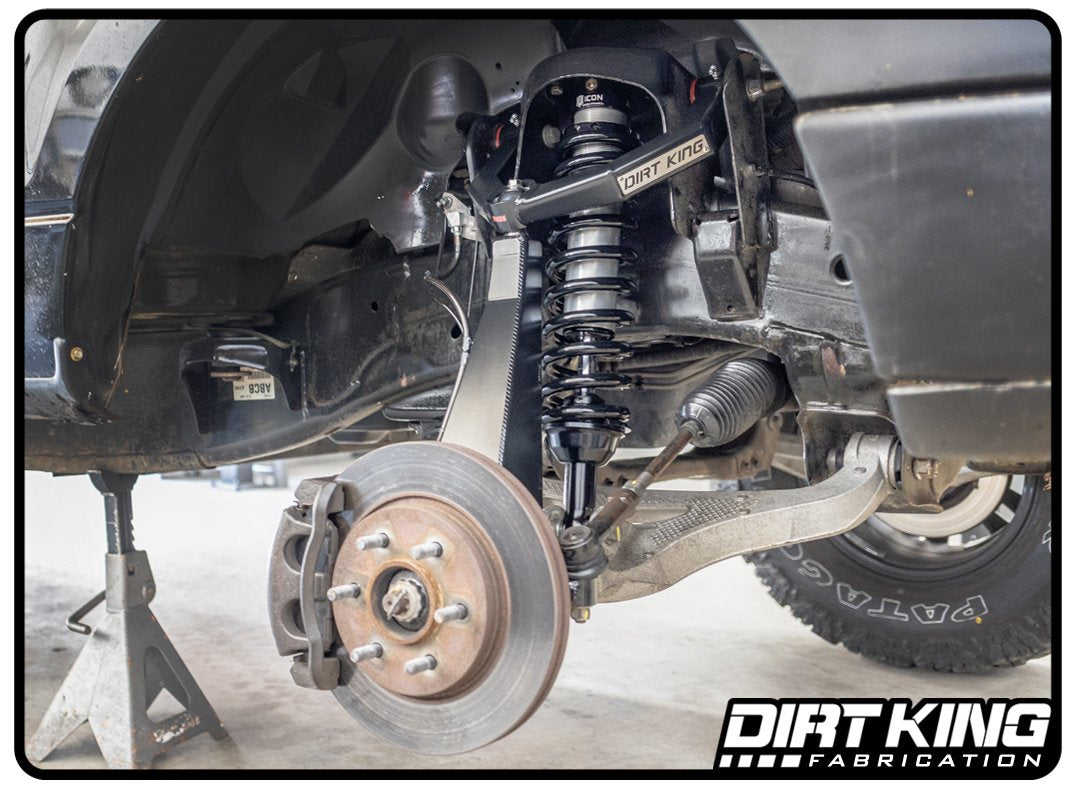

Installation
The installation of this product requires the use of factory hub snouts. They will need to be pressed out of the factory spindles and pressed into the new Dirt King lift spindles.
