Teeming with offroad pedigree, the Nuevo’s modern take on a classic offroad look means all business. The timeless 8 spokes and deep step lip lend the Nuevo a purposeful look, on or off the trail.
A sophisticated Silver Machined as well Satin black are offered in both 5 or 6 lug applications. Available offsets ranging from -6mm through +25 are perfect for making the Nuevo ‘at home’ on your ride.
Staying true to the ICON Alloys approach, the Nuevo has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

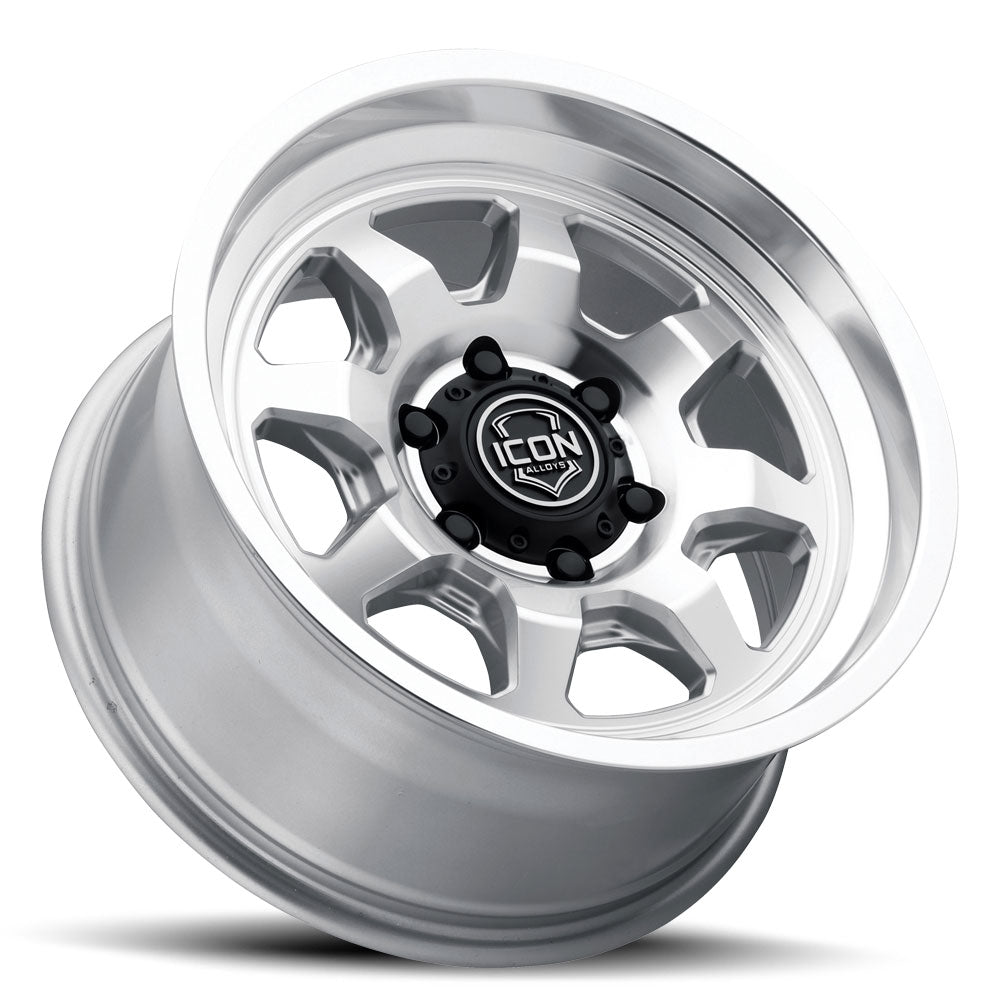

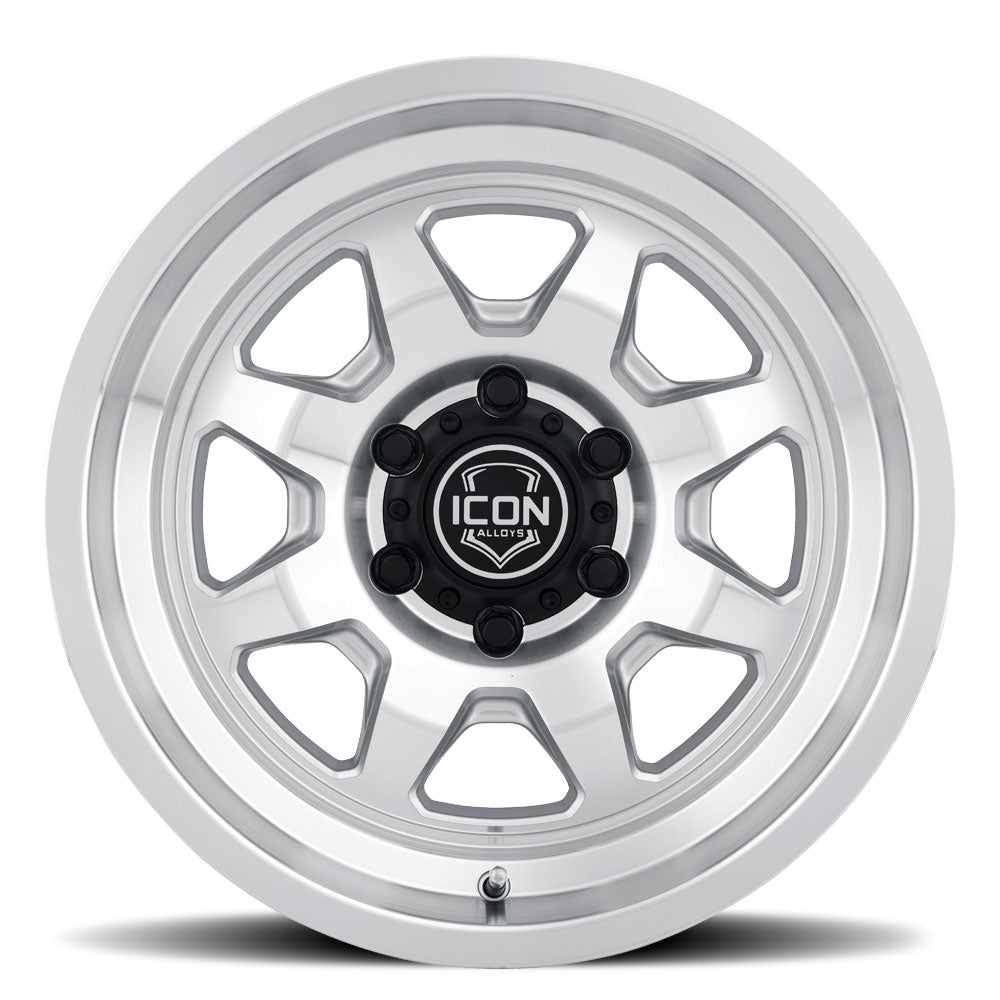

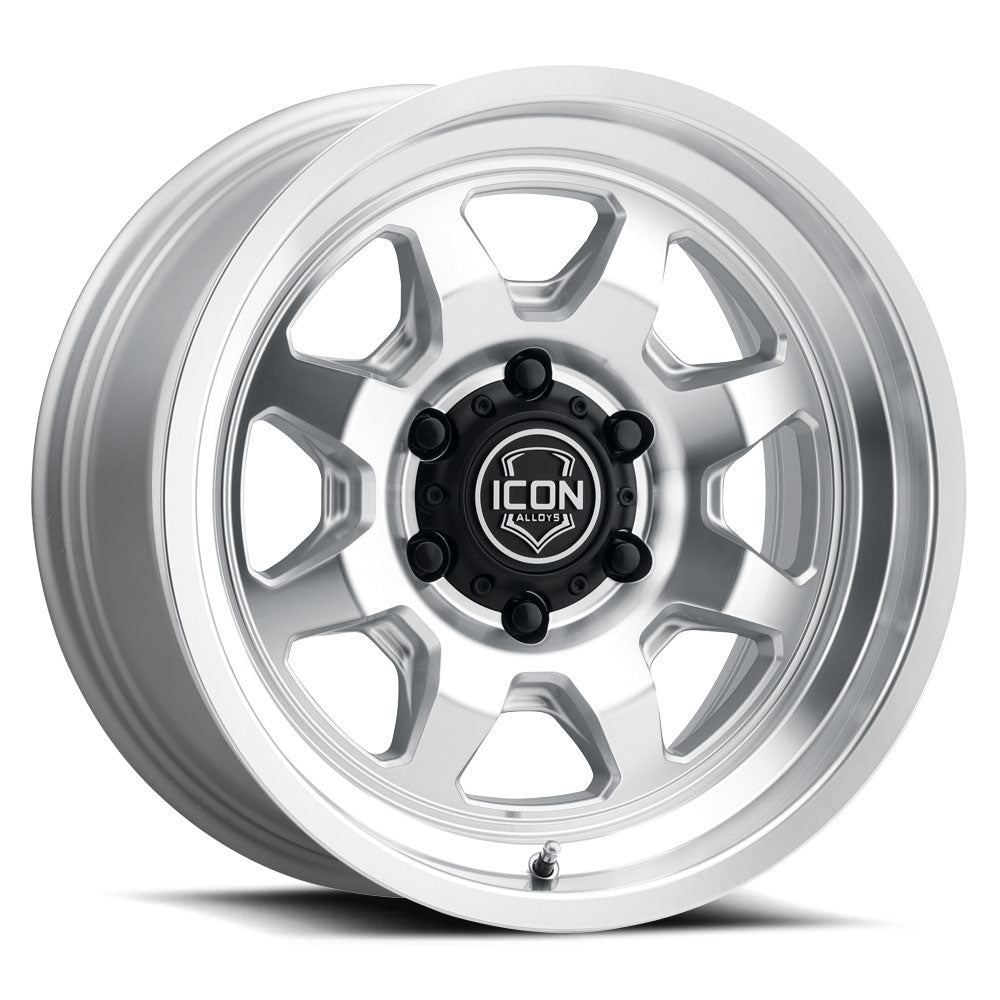

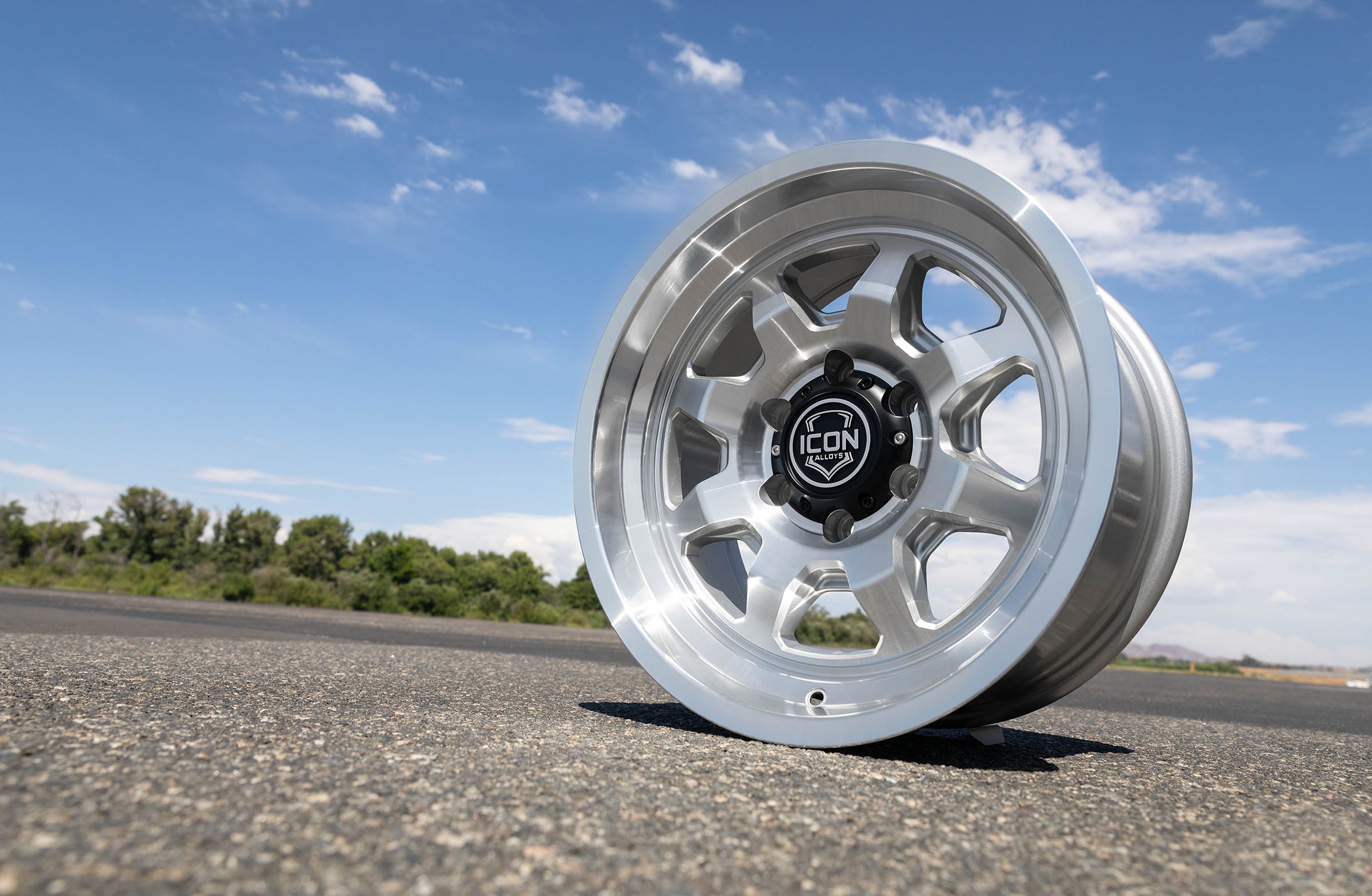

Classic 8-spoke styling with deep step lip 17 Inch X 8.5 Inch in 5-lug & 6-lug bolt patterns Silver machined surface with clear powder coat finish for corrosion resistance.
Features:
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
- Aluminum alloy construction provides strength properties that are well suited for off-road use 2750lbs load rating
Details:
- Backspacing: 4.5 Inch
- Bolt Pattern: 5 X 5
- Center Cap Included: Yes
- Color: Sliver Machined
- Construction: Cast
- Diameter: 17 Inch
- Finish: Powdercoated
- Inside Diameter: 71.5 MM
- Lug Hole Diameter: 1.1 Inch
- Lug Hole Quantity: 5
- Lug Nut Insert Included: No
- Lug Nut Seat Type: Conical
- Material: Aluminum
- Maximum Load Rating: 2750 LBS
- Negative Offset: 6 MM
- Offset: -6 MM
- Rim Diameter: 17 Inch
- Rim Width: 8.5 Inch
- Split Type: No
- Spoke Quantity: 8
- Tires Included: No
- TPMS Compatible: Yes
- TPMS Included: No
- Wheel Lug Hole Quantity: 5
- Wheel Nuts Included: No
- Wheel Size: 17x8.5 Inch
- Width: 8.5 Inch
Application Summary:
- 2020-2024 Jeep Gladiator
- 2018 Jeep Wrangler JK
- 2010-2015 Jeep Grand Cherokee
- 2007-2023 Jeep Wrangler
