Description
Any hardcore off-road enthusiast knows the numerous benefits that lower tire pressures offer such as improved ride quality and a larger contact patch for increased traction. However, low pressures also increase the risk of de-beading the tire during extreme side loads or aggressive driving.

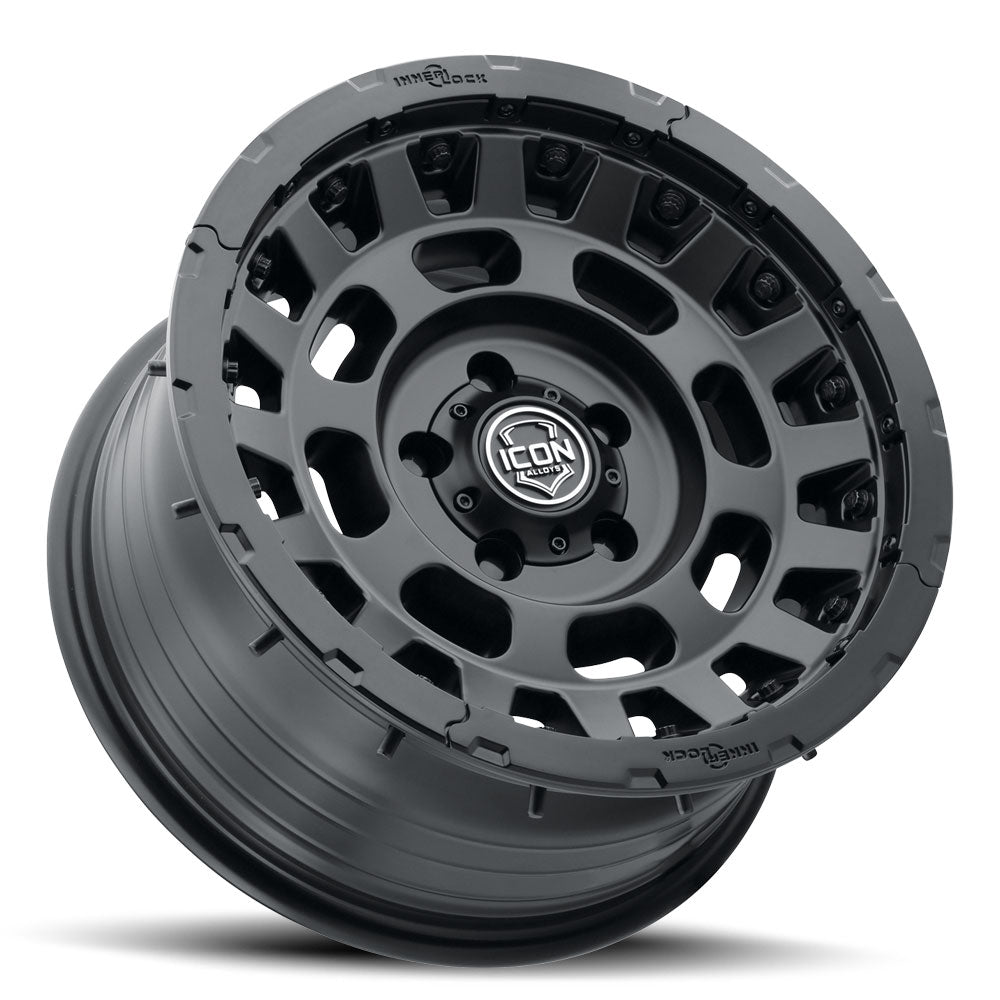

While traditional bead lock wheels address this issue by clamping the tire’s bead, they also need frequent maintenance, require specialty tools/parts, increase rotational mass, and are NOT legal for on-road use. The ICON Alloys Hammer PRO with patented InnerLock technology offers the best of both worlds by using a robust bead retention system to keep the tire bead secured to the wheel while also being fully DOT compliant.
This provides confidence in knowing that your wheels are prepared to tackle whatever situation you encounter - on or off the beaten path. InnerLock is ready for any type of terrain and every single adventure.
During an accelerated R&D process ICON engineers subjected the InnerLock technology to thousands of miles of real-world abuse throughout harsh and unforgiving environments. After on-vehicle testing was concluded, wheels were sent to an independent contractor for precise lab testing, specifically the FMVSS No.139 Tire Bead Unseat Resistance Test (modified to 10 psi).
Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600lbs load) without ever de-beading the tire. The included high-grade aluminum, removable, and replaceable HALO Wheel Armor keeps the wheel looking new by protecting the Hammer PRO from trail rash.
This HALO Wheel Armor is replaceable in 90° segments so individual sections can be changed if only a portion of the ring becomes damaged. Beyond superior form and function the HALO Wheel Armor can be easily customized to match your style for a truly unique wheel experience.
Staying true to the ICON Alloys approach, the Hammer PRO has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality.
The Hammer PRO has also been strength tested to yield an incredible 3,650lb load rating - making it one of the strongest wheel options on the market. With build features such as these, it's clear that a set of ICON Alloys Hammer PRO wheels is the perfect complement to any truck, Jeep, or SUV.
Features:
- Engineered for DOT compliance
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Aluminum alloy construction provides strength properties that are well suited for off-road use Incredibly strong 3,650 lbs load rating Patented InnerLock technology (U.S
Details:
- Backspacing: 5.75 Inch
- Bolt Pattern: 6 X 5.5
- Center Cap Included: Yes
- Color: Satin Black
- Construction: Cast
- Design: Bead Retention
- Diameter: 17 Inch
- Finish: Powdercoated
- Grade Type: Performance
- Hub Bore Diameter: 95.1 MM
- Lug Hole Diameter: 1.1 Inch
- Lug Hole Quantity: 6
- Lug Nut Insert Included: No
- Lug Nut Seat Type: Conical
- Material: Aluminum
- Maximum Load Rating: 3650 LBS
- Offset: 25 MM
- Positive Offset: 25 MM
- Rim Diameter: 17 Inch
- Rim Width: 8.5 Inch
- Split Type: No
- Spoke Quantity: 16
- Tires Included: No
- TPMS Compatible: No
- TPMS Included: No
- Wheel Lug Hole Quantity: 6
- Wheel Nuts Included: No
- Wheel Size: 17x8.5 Inch
- Width: 8.5 Inch
Application Summary:
- 2022-2025 Lexus LX600
- 2021-2026 Ford Bronco Badlands Big Bend Outer Banks Base Black Diamond (Qualifier: without Sasquatch Package)
- 2024-2026 Lexus GX550
- 2025-2026 Toyota 4Runner
- 2024-2026 Toyota Land Cruiser (Qualifier: 250 Series)
- 2024-2026 Toyota Tacoma
- 2019-2023 Ford Ranger Lariat XL XLT XLT Plus
- 2022-2025 Toyota Tundra
- 2023-2025 Toyota Sequoia
