Any hardcore off-road enthusiast knows the numerous benefits that lower tire pressures offer such as improved ride quality and a larger contact patch for increased traction. However, low pressures also increase the risk of de-beading the tire during extreme side loads or aggressive driving.
While traditional bead lock wheels address this issue by clamping the tire’s bead, they also need frequent maintenance, require specialty tools/parts, increase rotational mass, and are NOT legal for on-road use. The ICON Alloys Hammer PRO with patented InnerLock technology offers the best of both worlds by using a robust bead retention system to keep the tire bead secured to the wheel while also being fully DOT compliant.
This provides confidence in knowing that your wheels are prepared to tackle whatever situation you encounter - on or off the beaten path. InnerLock is ready for any type of terrain and every single adventure.
During an accelerated R&D process ICON engineers subjected the InnerLock technology to thousands of miles of real-world abuse throughout harsh and unforgiving environments. After on-vehicle testing was concluded, wheels were sent to an independent contractor for precise lab testing, specifically the FMVSS No.139 Tire Bead Unseat Resistance Test (modified to 10 psi).
Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600lbs load) without ever de-beading the tire. The included high-grade aluminum, removable, and replaceable HALO Wheel Armor keeps the wheel looking new by protecting the Hammer PRO from trail rash.

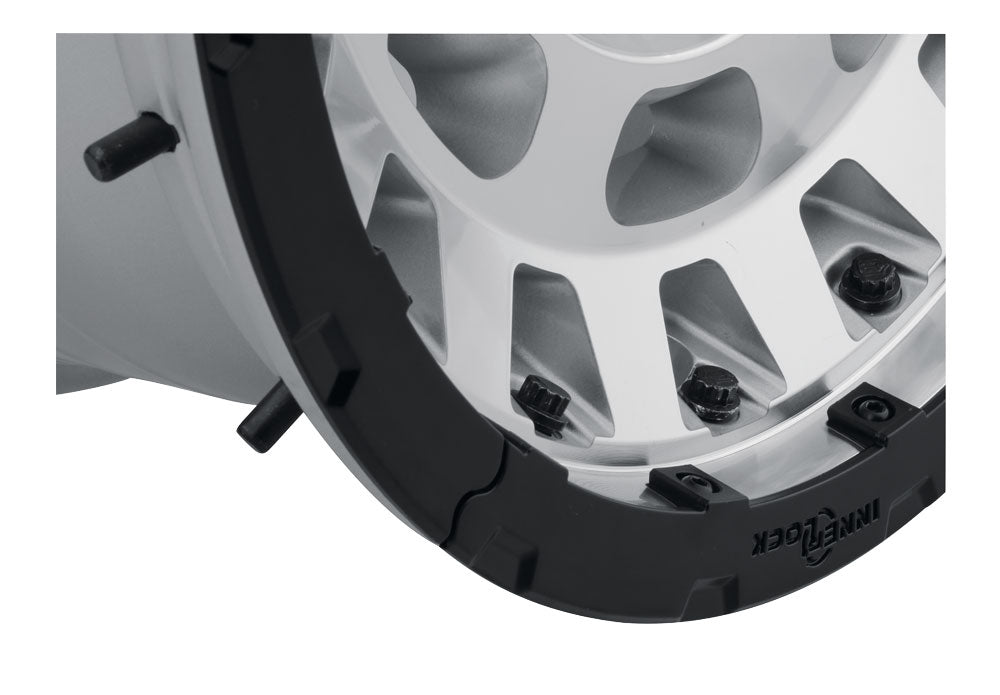

This HALO Wheel Armor is replaceable in 90° segments so individual sections can be changed if only a portion of the ring becomes damaged. Beyond superior form and function the HALO Wheel Armor can be easily customized to match your style for a truly unique wheel experience.
Staying true to the ICON Alloys approach, the Hammer PRO has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality.
The Hammer PRO has also been strength tested to yield an incredible 3,650lb load rating - making it one of the strongest wheel options on the market. With build features such as these, it's clear that a set of ICON Alloys Hammer PRO wheels is the perfect complement to any truck, Jeep, or SUV.
Features:
- Engineered for DOT compliance
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Aluminum alloy construction provides strength properties that are well suited for off-road use Incredibly strong 3,650 lbs load rating Patented InnerLock technology (U.S
Details:
- Backspacing: 4.75 Inch
- Bolt Pattern: 6 X 5.5
- Center Cap Included: Yes
- Color: Silver Machined w/ Black Ring
- Construction: Cast
- Design: Bead Retention
- Diameter: 17 Inch
- Finish: Powdercoated
- Grade Type: Performance
- Hub Bore Diameter: 106.1 MM
- Inside Diameter: 106.1 MM
- Lug Hole Diameter: 1.1 Inch
- Lug Hole Quantity: 6
- Lug Nut Insert Included: No
- Lug Nut Seat Type: Conical
- Material: Aluminum
- Maximum Load Rating: 3650 LBS
- Negative Offset: 0 MM
- Offset: 0 MM
- Positive Offset: 0 MM
- Rim Diameter: 17 Inch
- Rim Width: 8.5 Inch
- Split Type: No
- Spoke Quantity: 16
- Tires Included: No
- TPMS Compatible: No
- TPMS Included: No
- Wheel Lug Hole Quantity: 6
- Wheel Nuts Included: No
- Wheel Size: 17x8.5 Inch
- Width: 8.5 Inch
Application Summary:
- 2021-2026 Ford Bronco Everglades Big Bend Outer Banks Badlands Black Diamond Base Heritage Edition Stroppe Edition Wildtrak First Edition Heritage Limited Edition (Qualifier: without Sasquatch Package, with ICON Billet Front Upper Control Arms, with Sasquatch Package)
- 1995-2025 Toyota Tacoma Pre Runner SR5 Prerunner TRD Sport Prerunner Base Prerunner TRD Sport (Drive: 4WD, RWD)
- 2014-2026 Chevrolet Suburban
- 2019 Chevrolet Silverado 1500 LD
- 2022 Chevrolet Silverado 1500 LTD
- 2022 Chevrolet Silverado 1500 Nueva
- 2007-2026 Chevrolet Silverado 1500
- 2007-2014 Chevrolet Suburban 1500
- 2007-2026 Chevrolet Tahoe
- 2015-2026 GMC Yukon XL
- 2019-2022 GMC Sierra 1500 Limited
- 2022 GMC Sierra Nueva
- 2007-2026 GMC Sierra 1500
- 2007-2026 GMC Yukon
- 2007-2014 GMC Yukon XL 1500
- 2004-2024 Nissan TITAN
- 2016-2024 Nissan TITAN XD
- 2003-2009 Lexus GX470
- 2010-2023 Lexus GX460
- 1996-2024 Toyota 4Runner
- 2000-2006 Toyota Tundra
- 2007-2014 Toyota FJ Cruiser
