Description

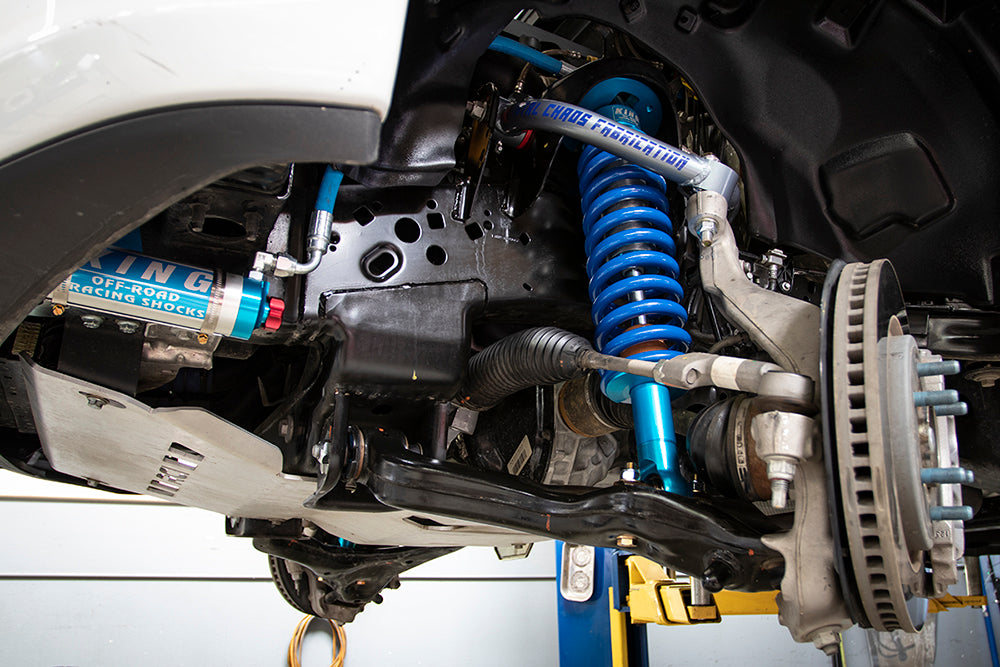

Upper control arms combined with extended length coilover shocks will allow for up to 1'' of additional wheel droop travel.
Urethane bushings reduce bushing deflection compared to stock rubber bushings.

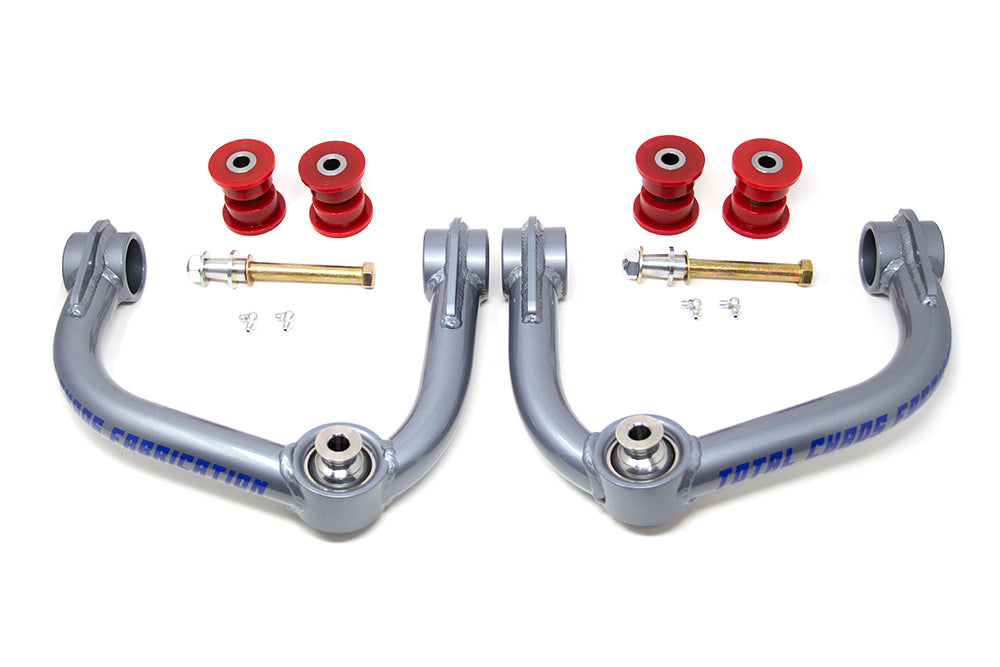

4130 chromoly tubular upper control arms are 100% bolt on.
CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel. Drilling the lower taper of the spindle with a 9/16" drill bit for clearance is required to install the bolt. No irreversible changes are made for re-installing a ball joint.
TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise.
Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.
Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.
3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
Complete Grade 8 hardware kit is included.
Hand crafted in the U.S.A.
Not compatible with air ride or variable ride height models.
