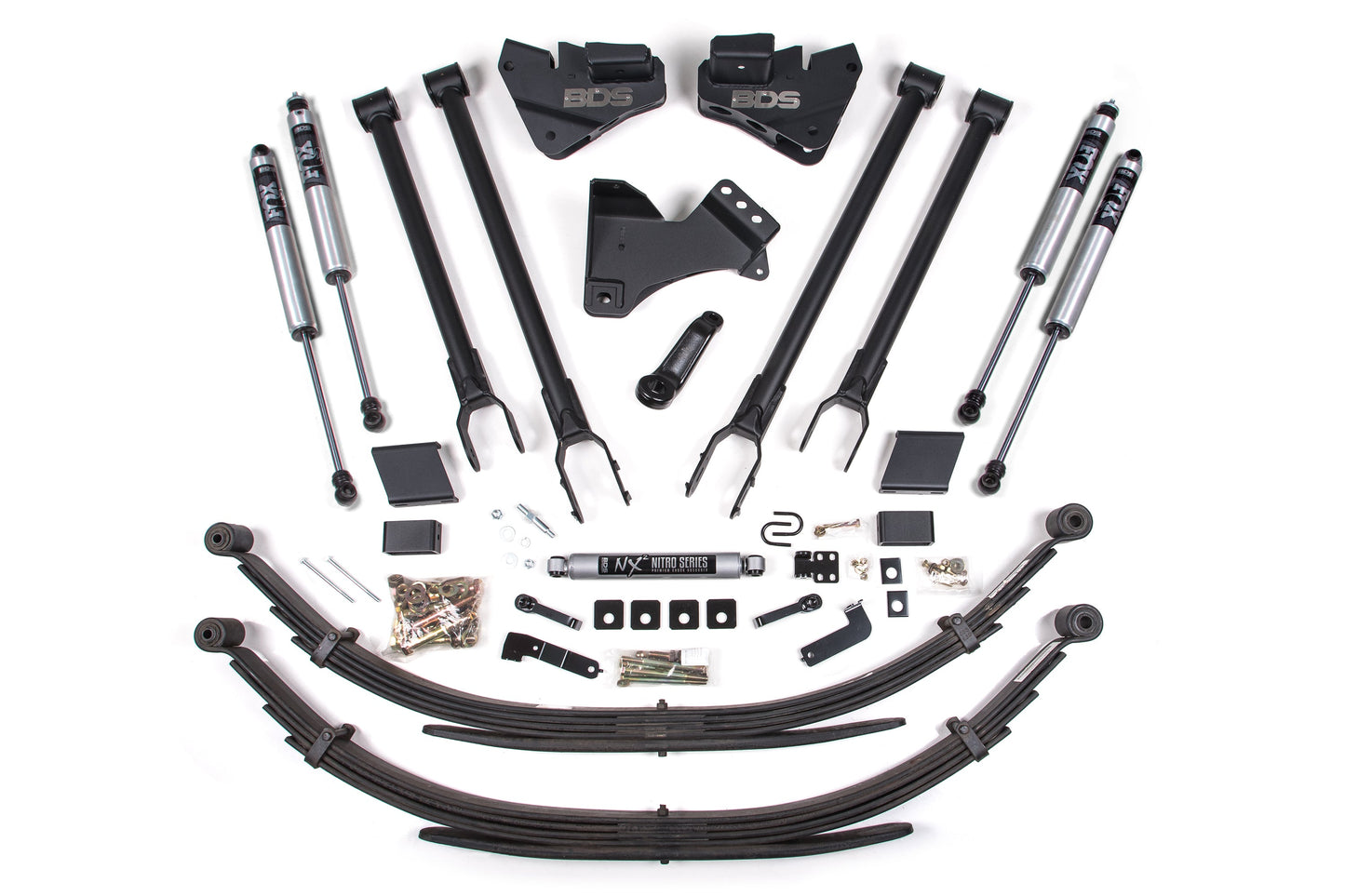

5 Inch Lift Kit W/ 4-Link | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

5 Inch Lift Kit W/ 4-Link | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

BDS

Regular price $2,628.55
Regular price Sale price $2,628.55
Sale Sold out

SKU:BDS1567FS

Discount available for Military and First Responders

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?
View full details

PRODUCT DESCRIPTION

Raise the height of your Ford Super Duty diesel powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.



4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

4 Inch Block Kit

  • Included in the base system.
  • Made of cast iron for high strength.
  • Designed to provide correct pinion angles.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
