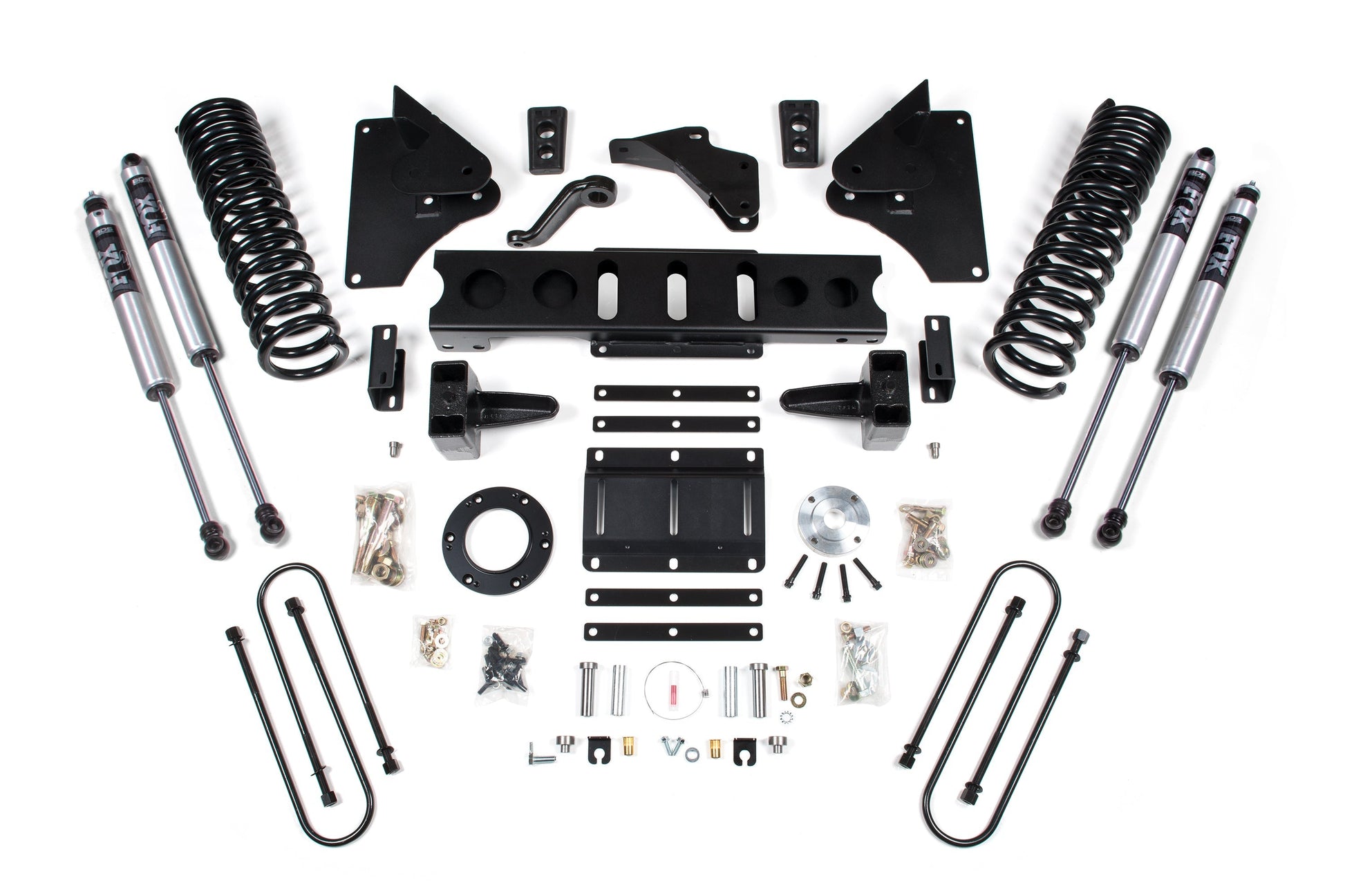

• A flat lay image showcases various components from the BDS 6 Inch Lift Kit for a Ram 3500 (13-18) 4WD Diesel. The display includes Pro-Ride coil springs, shock absorbers, brackets, bolts, and other hardware arranged in an organized manner. All components are primarily black and metallic in color, ideal for enhancing your RAM 3500's performance and appearance.
1 1

6 Inch Lift Kit | Ram 3500 (13-18) 4WD | Diesel

6 Inch Lift Kit | Ram 3500 (13-18) 4WD | Diesel

BDS

$2,329.60
$2,329.60
Sale Sold out

BDS1786FS

Discount available for Military and First Responders

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?
View full details

PRODUCT DESCRIPTION

  • Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

    Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

    In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

    Pro-Ride Coil Springs

    A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

    Steering Correction

    To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

    Features & Benefits

    • Heavy duty radius arm drop brackets maintain proper suspension geometry
    • Front high strength progressive rate coil springs for a great ride on any terrain
    • Front track bar relocation bracket to re-position axle
    • Forged drop pitman arm to correct steering angles
    • Front sway bar correction to maintain handling performance
    • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
    • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

    Recommended Tires & Wheels

    • 37 x 13.5 with 17 x 9 and 5.625 in. Backspace
    • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
    • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

    Rear Lift Option

    Block Kit

    • 5 Inch Block: Level to tail high appearance
    • 4 Inch Block: Tail low to level stance
    • Made of cast iron for high strength.
    • Designed to provide correct pinion angles.

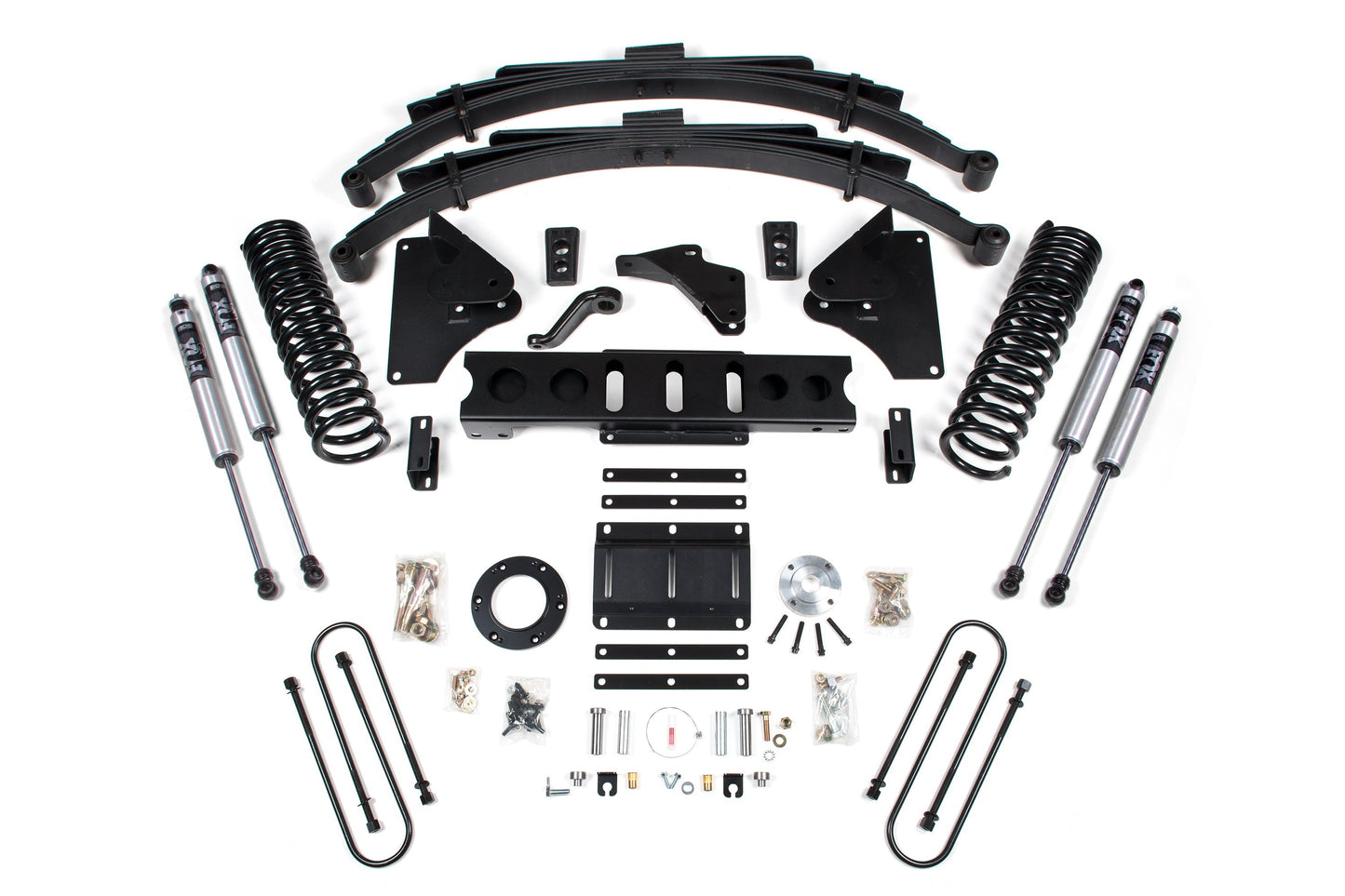

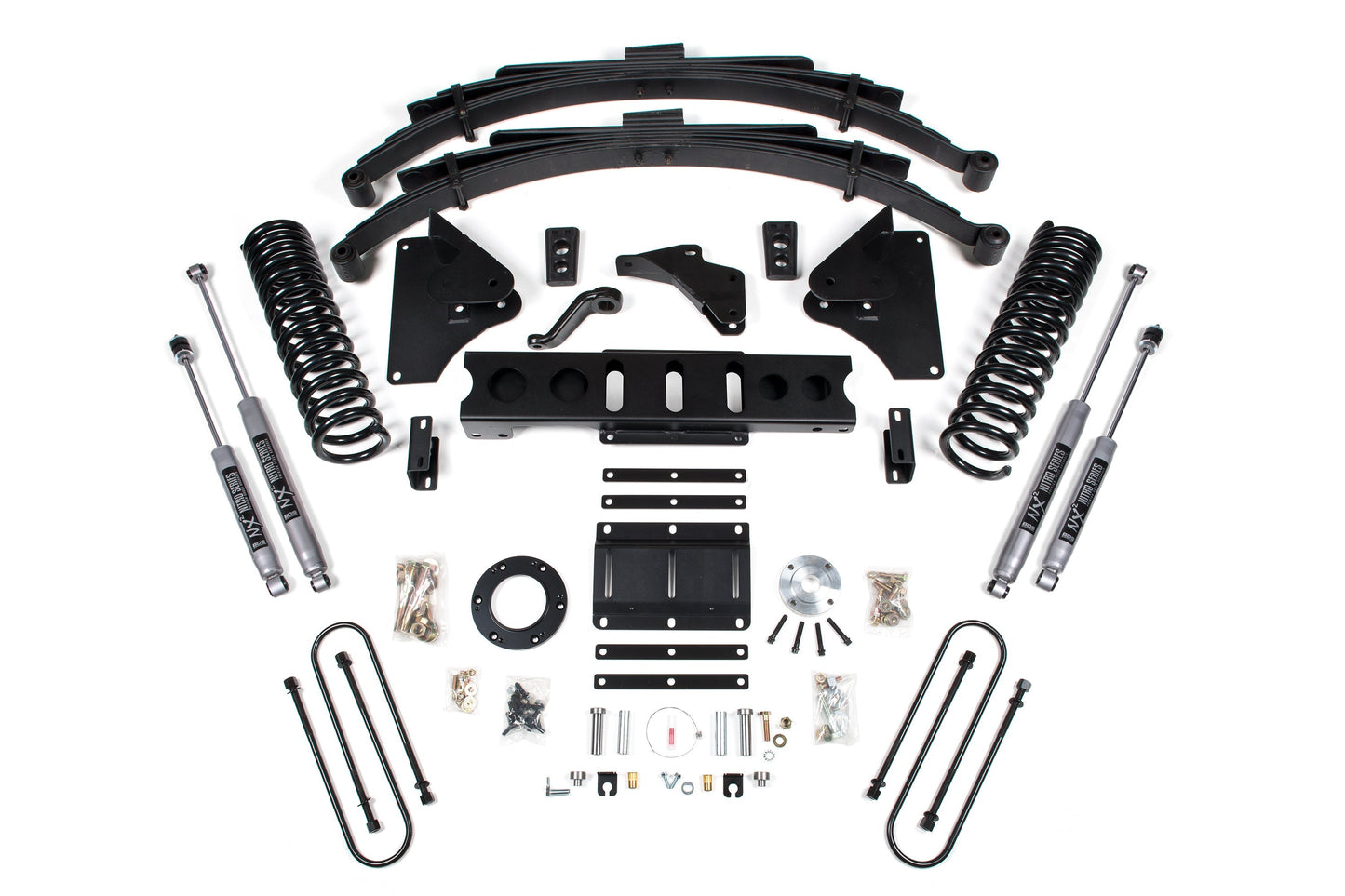

    Leaf Springs

    • Level stance front to rear.
    • Eliminates any need for a lift block.
    • Reduces axle wrap and creates a more controlled and stable feel.
    • Multi-leaf progressive design for a smooth ride.
    • Maintains factory payload weight ratings.

    Shock Option

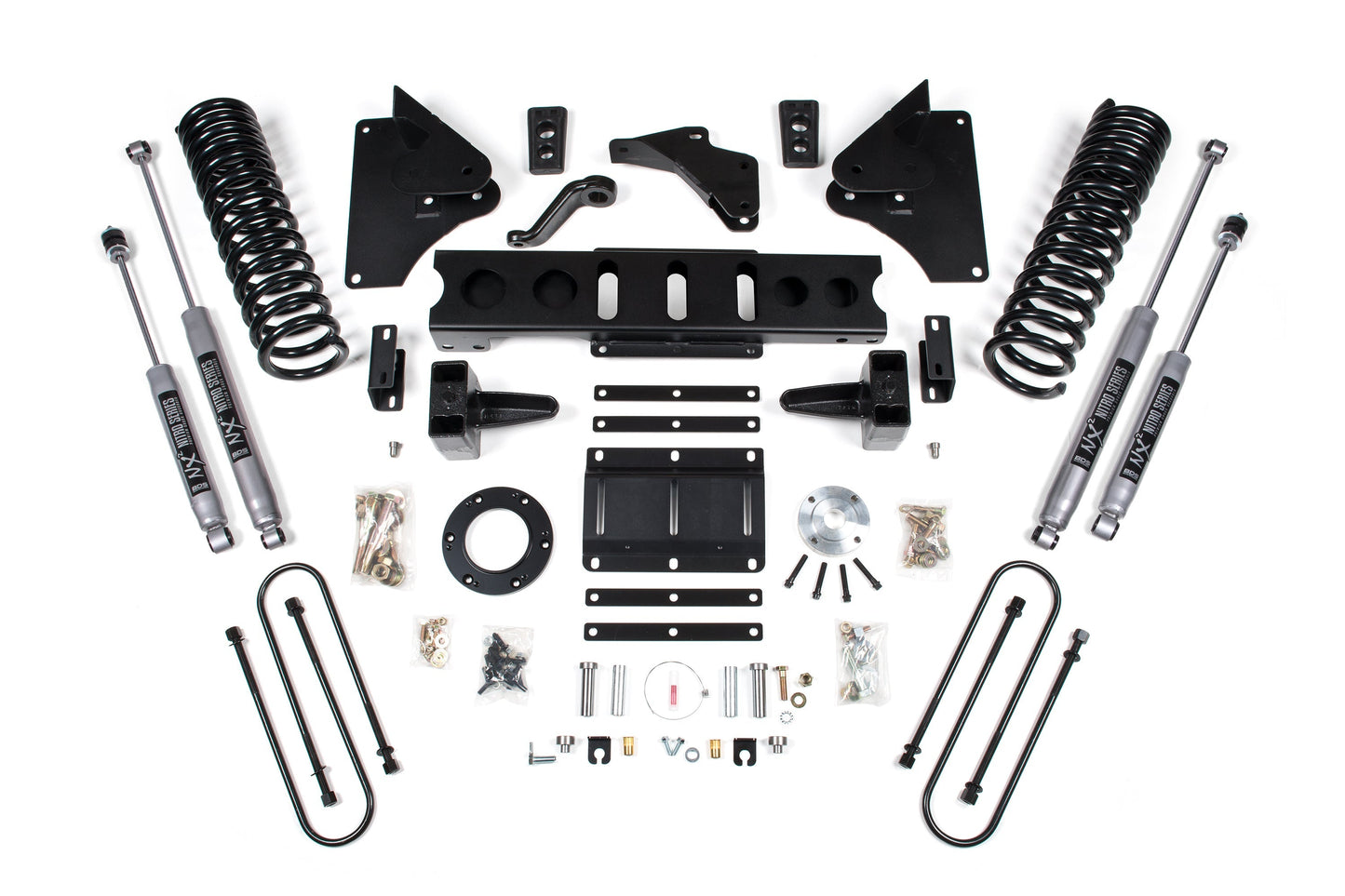

    NX2 Nitro Series

    • Nitrogen-charged
    • Twin-tube design
    • 10-stage velocity-sensitive valving
    • Dual-welded ends for increased strength
    • 1-3/8-inch high-flow piston
    • Self-lubricating seals
    • Silver powder coat finish

    FOX 2.0 Performance Series

    • 2-inch Impact extruded aluminum body
    • Internal floating piston (IFP) monotube design
    • CNC machined 6061-T6 aluminum mounting ends
    • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
    • Race-developed high-flow piston design
    • Application-specific valving to maximize performance
    • Long-lasting clear anodized finish

    Indexing Ring Option

    6 Bolt Indexing Ring

    • Kits come standard with 6-Bolt indexing ring kit.

    8 Bolt Indexing Ring

    • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
    • The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
