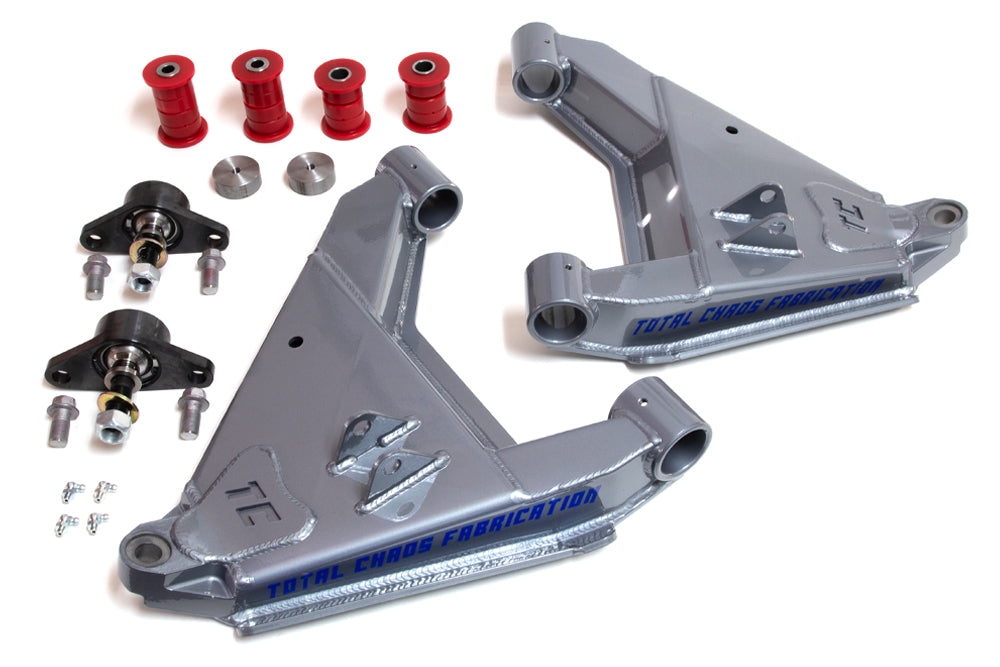

• A set of TOTAL CHAOS 16-22 Toyota Tacoma Standard Series Lower Control Arms with billet machined uniball adapters and mounting hardware, including bushings, ball joints, and bolts. The control arms are powder-coated in light gray with blue "TOTAL CHAOS" branding. Additional red bushings and hardware are displayed.
1 4

16-22 Toyota Tacoma Standard Series Lower Control Arms

16-22 Toyota Tacoma Standard Series Lower Control Arms

TOTAL CHAOS

$1,943.55
$1,943.55
Sale Sold out

86500-16

Discount available for Military and First Responders

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?
View full details

PRODUCT DESCRIPTION

Control arms are 100% bolt on.

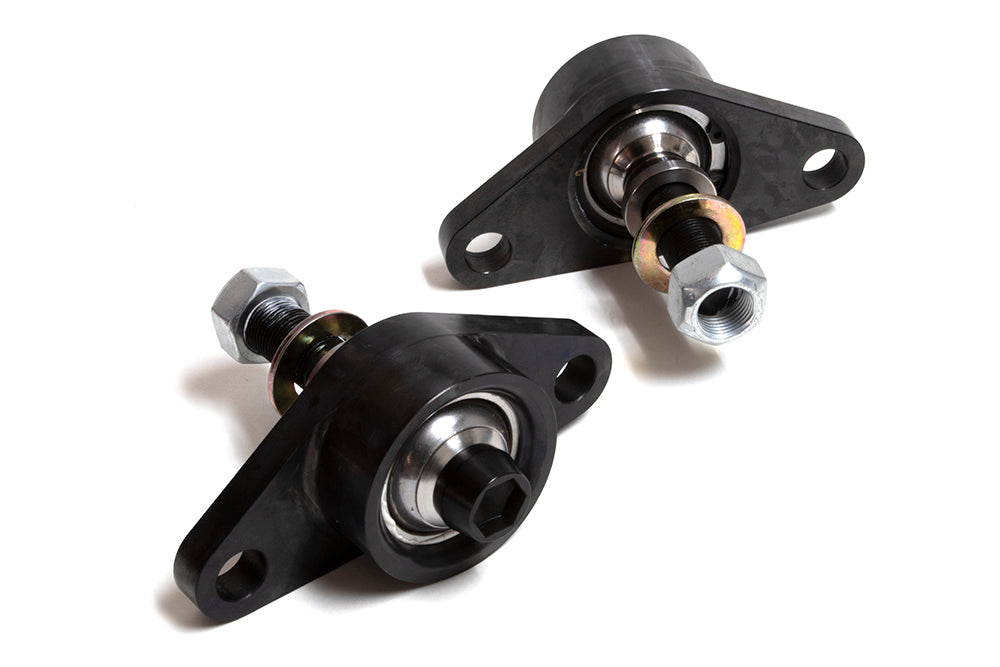

Features a two-bolt billet machined uniball adapter that bolts to factory spindle.

Lower ball joints are upgraded to a 1'' stainless steel uniball for maximum wheel travel and added component strength.

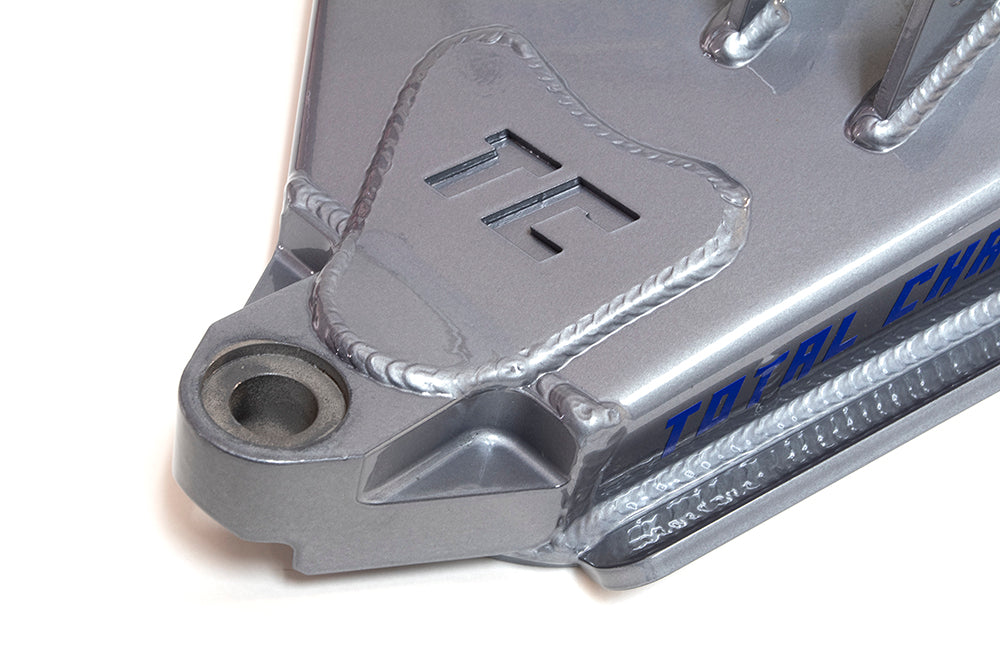

3/16'' main body stock length fully boxed lower control arms are CNC laser cut and include internal gussets.

Boxed arms feature replaceable urethane pivot bushings. Pivots include zerk fittings to maintain the equipment while bolted on the vehicle.

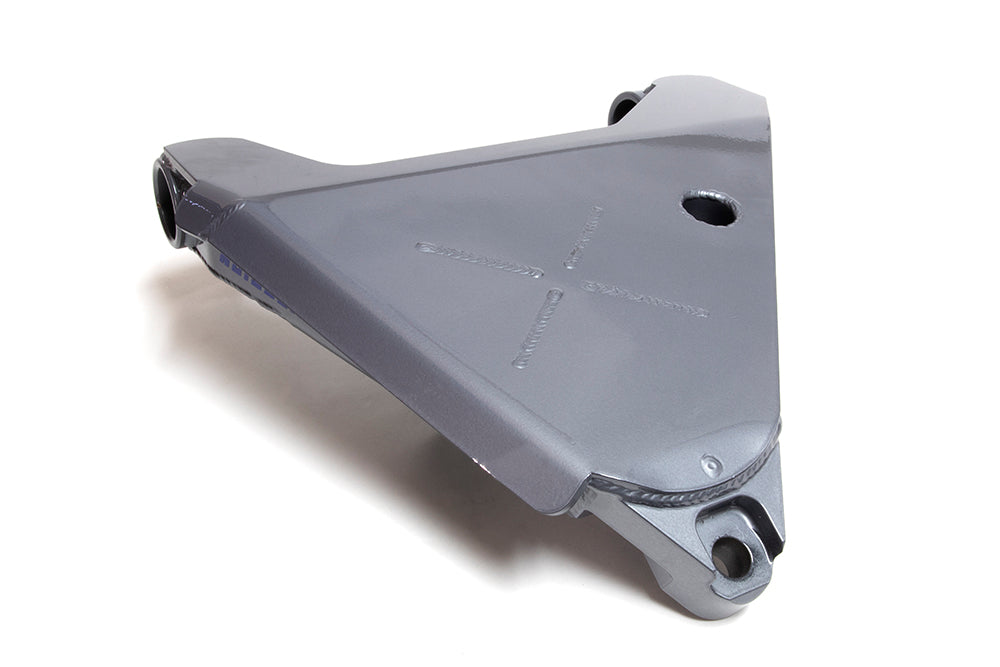

1/4'' thick steel skid plate is integrated into the control arm for rock crawling protection.

Weld-on bump stop spacers are included.

These arms will not fit on Hilux Revo or vehicles equipped with KDSS.

Not compatible with shocks outfitted with bushing lower rod ends.

Stock length replacement lower A-arm - SINGLE SHOCK ONLY.

Three stage powder coat includes a durable clear coat.

Hand crafted in the U.S.A.

NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.
