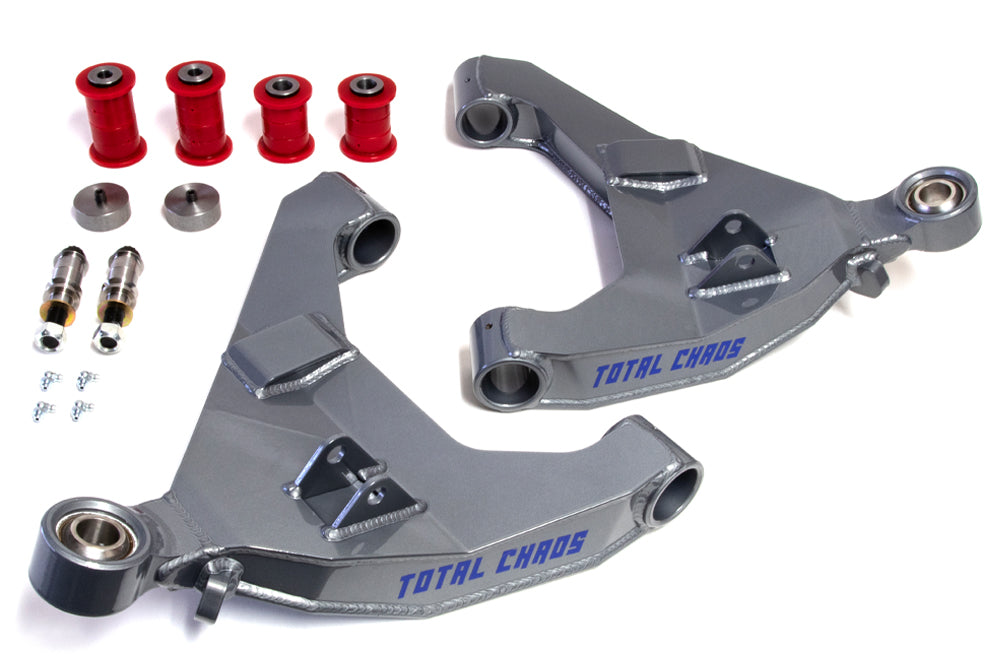

• The image showcases the 16-22 Toyota Tacoma Expedition Series Lower Control Arms with Single Shock Mount by TOTAL CHAOS. The kit includes two grey lower control arms, four red bushings, two cylindrical metal parts, two threaded bolts, two nuts, and small hardware pieces. These billet CNC-machined uniball arms ensure maximum ground clearance.
1 3

16-22 Toyota Tacoma Expedition Series Lower Control Arms with Single Shock Mount

16-22 Toyota Tacoma Expedition Series Lower Control Arms with Single Shock Mount

TOTAL CHAOS

$2,298.98
$2,298.98
Sale Sold out

86555-E-16-NSS

Discount available for Military and First Responders

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?
View full details

PRODUCT DESCRIPTION

Light weight. Maximum ground clearance. Fully rebuildable. Bolt on.

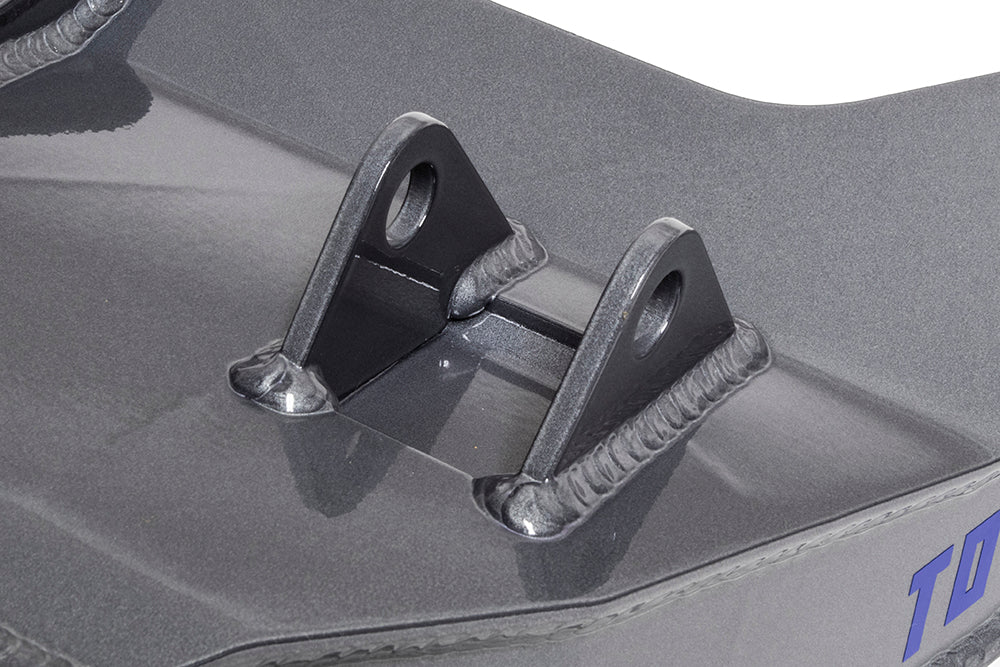

Pocket added at the coilover shock tabs maximizes clearance allowing for a wider range of shocks to be used - up to 3.0". Will work with all brands of aftermarket shocks.

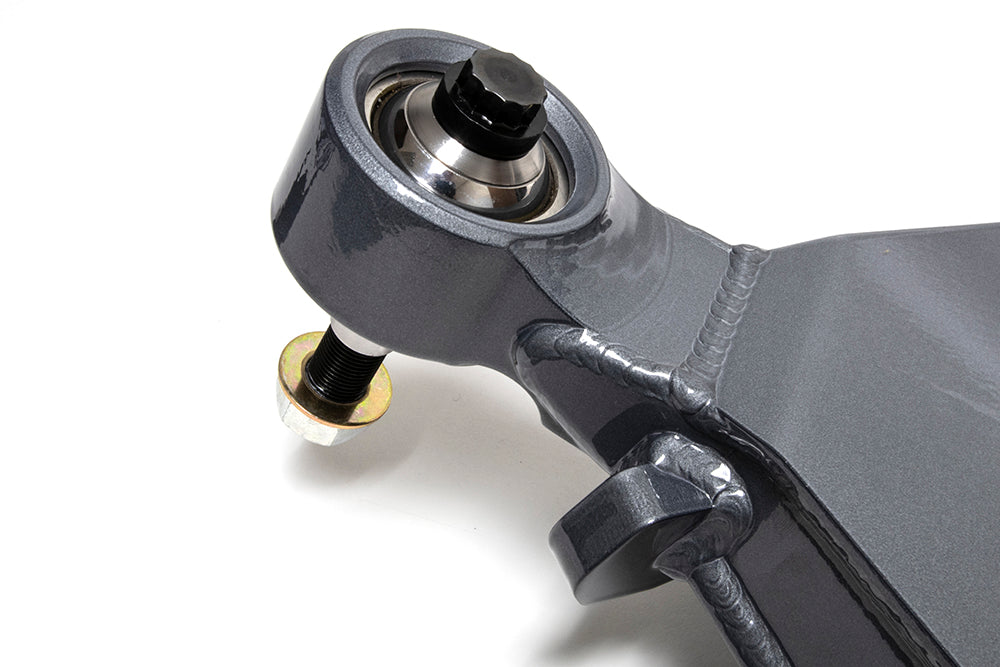

Billet CNC machined uniball cup houses a 1'' 100% stainless steel uniball that upgrades the factory ball joints for greater articulation and strength.

Integrated steering stop tabs retain factory turning angles.

Urethane pivot bushings reduce deflection compared to a rubber bushing offering a tigher steering feel. Zerk fittings allow for easy maintenance.

4130 chromoly laser cut plates are fully boxed and include internal gussets.

Stock length replacement lower A-arm - SINGLE SHOCK ONLY.

Three stage powder coat includes a durable clear coat.

Hand crafted in the U.S.A.

NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.
