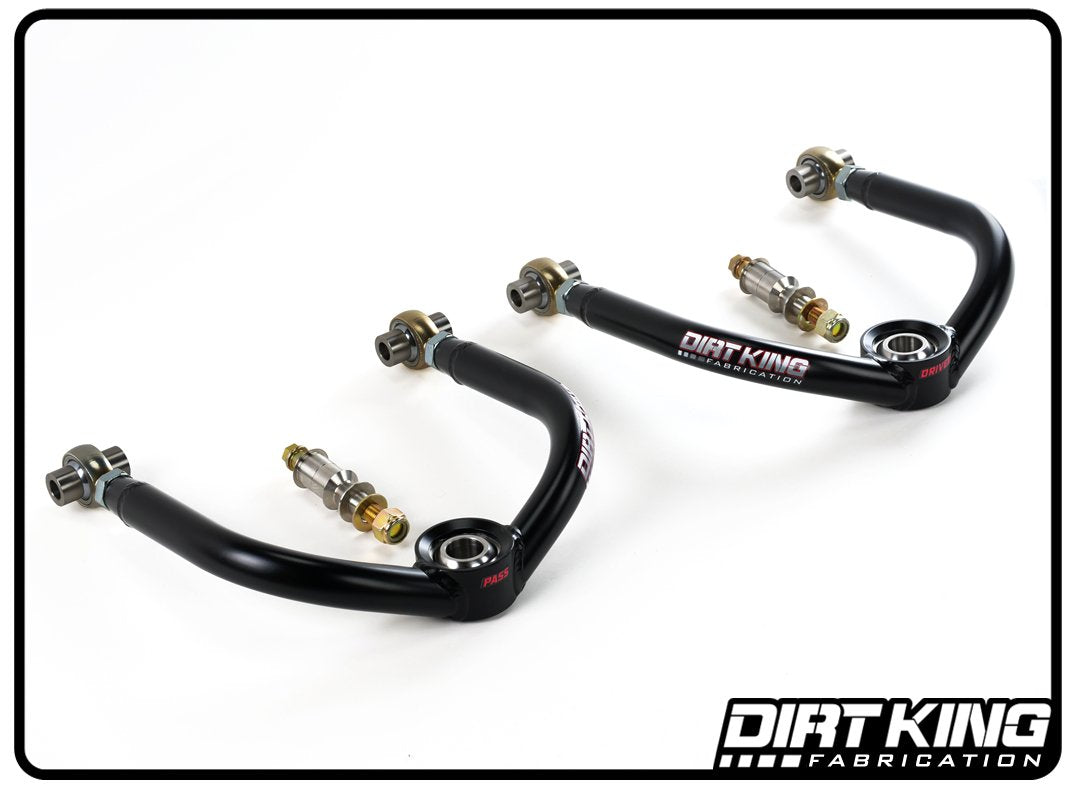

• A pair of 04-21 Nissan Titan Heim Upper Control Arms from DIRT KING, designed for increased articulation, are positioned side-by-side on a white background. Two sets of stainless steel uniballs are placed between the control arms. The DIRT KING logo is displayed in the bottom right corner.

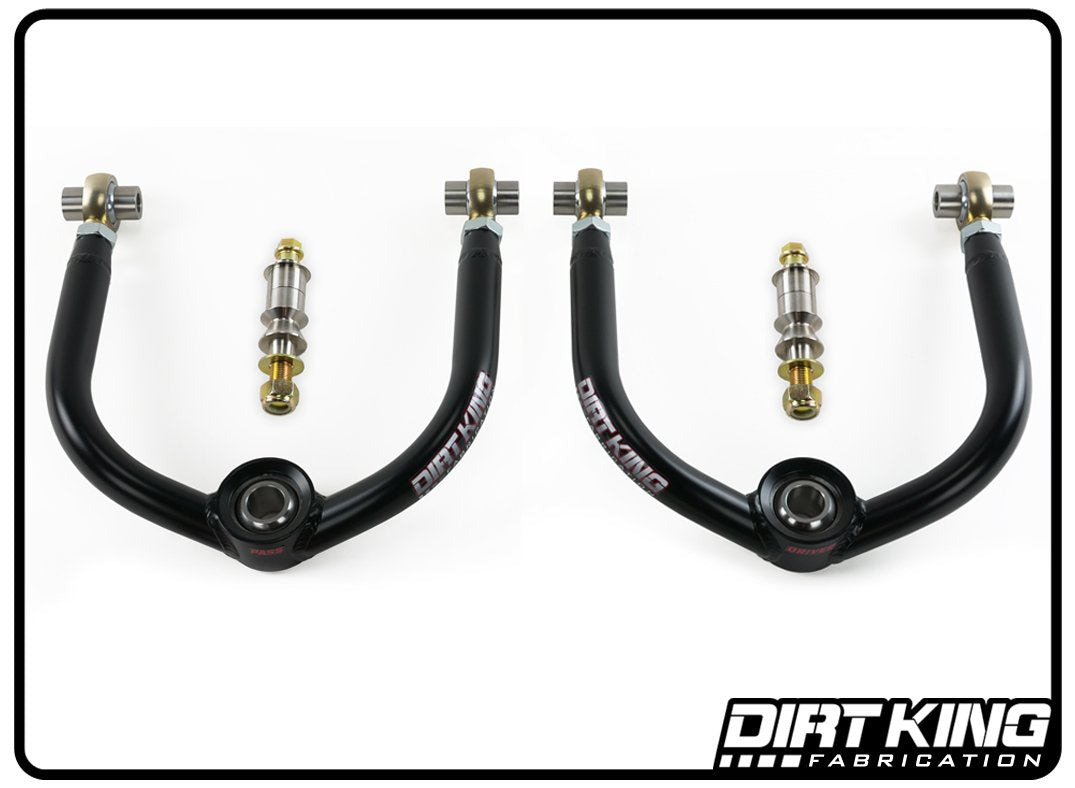

  • A pair of 04-21 Nissan Titan Heim Upper Control Arms from DIRT KING, designed for increased articulation, are positioned side-by-side on a white background. Two sets of stainless steel uniballs are placed between the control arms. The DIRT KING logo is displayed in the bottom right corner.
1 2

04-21 Nissan Titan Heim Upper Control Arms

04-21 Nissan Titan Heim Upper Control Arms

DIRT KING

$832.02
$849.00 $832.02
Sale Sold out

DK-701903

Discount available for Military and First Responders

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?
View full details

PRODUCT DESCRIPTION

There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. We solved these problems by designing our upper control arms with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. For the inner pivots we used heavy duty ¾” FK heims for additional camber and caster adjustability. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and military grade F911 hardware. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.

Specifications
Wheel Travel: Additional 2” of travel compared to stock
Amount of Lift: Allows for 0-3” of lift
Track Width: Stock
Maximum Backspacing: 5.25”
Minimum Rim Size: 17”
Coil over Shock Size:Factory or OEM replacement coilovers
Wheel Travel / Lift
The upper control arms must be paired with OEM replacement coil overs to lift the vehicle. They offer an additional 2” of down travel compared to the stock upper control arms. These arms are compatible with King, Fox, Bilstein, and Icon coil overs. Do not install these upper control arms with coil spacers that over articulate the suspension.

Tire Info
The upper control arms allow for 33” tires but for proper tire clearance modifications to the wheel well and bumper may need to be made.

What's Included
Chromoly upper control arms
Grease fittings
1” FK uniballs
3/4"" FK heim joints
17-4 stainless steel misalignment spacers
Military grade F911 hardware
Durable black powder coat
Dirt King sticker pack
Installation instructions
Features
CAD designed
Complete 4130 chromoly construction
Preassembled for fast installation
Grease fittings for easy servicing
Zinc plated components for corrosion resistance
Professionally MIG welded
Proudly made in the USA
