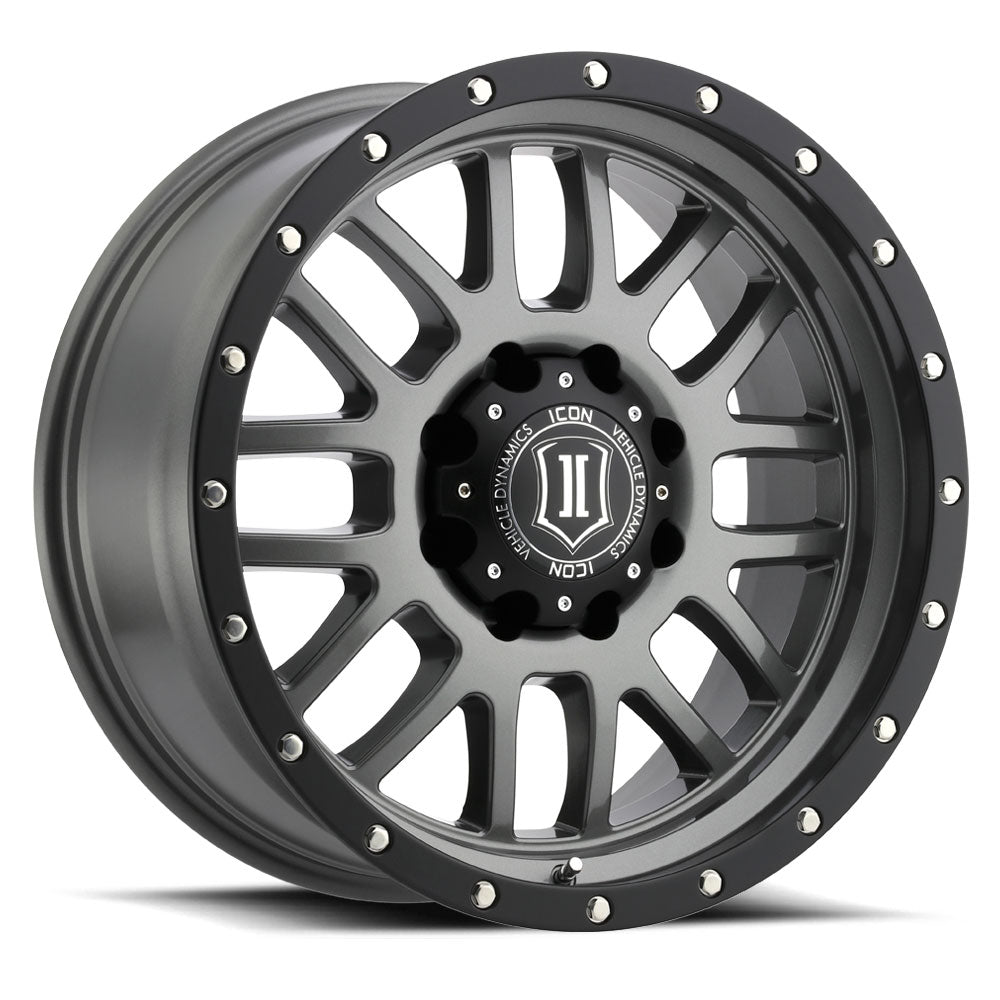

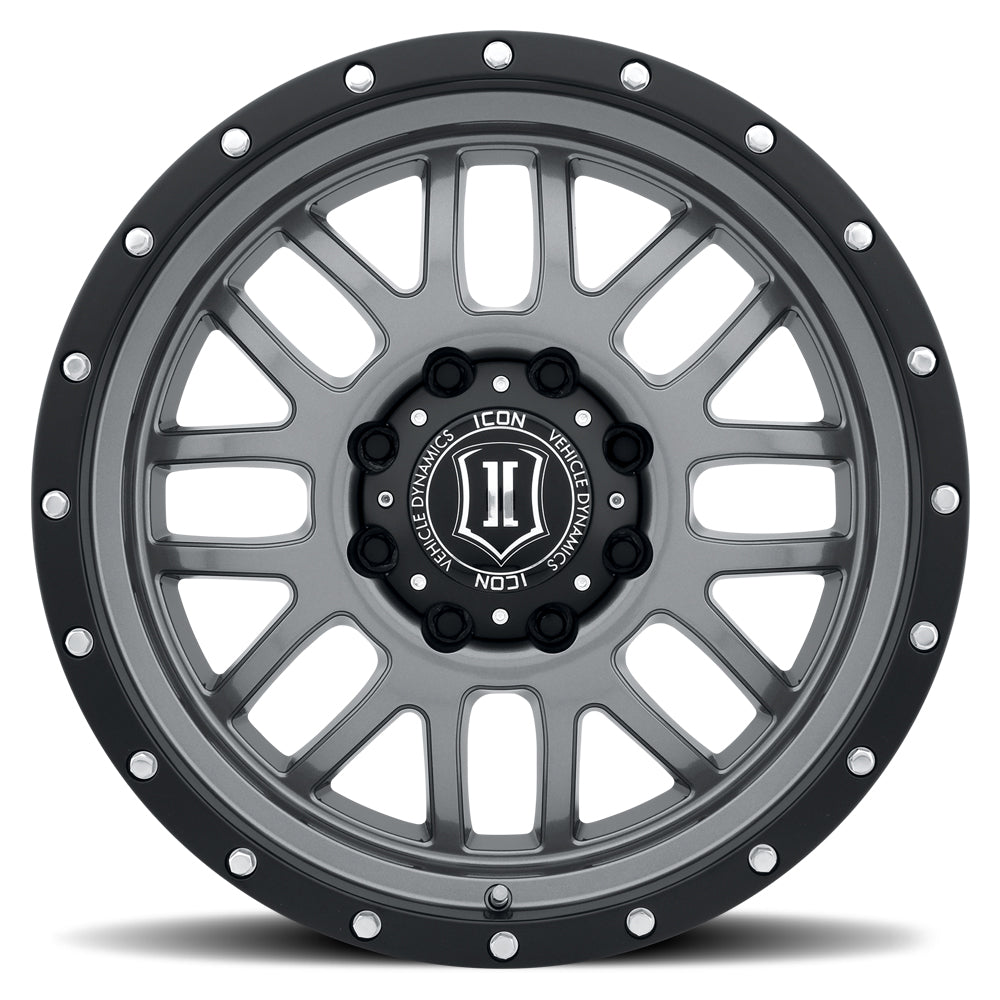

A potent blend of on-road looks and off-road capability, the ALPHA is aimed to increase both the form and function of your Jeep, truck, or SUV. Staying true to the ICON Alloys approach, the ALPHA has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function.
Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.
Features:
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
- Aluminum alloy construction provides strength properties that are well suited for off-road use
Details:
- Backspacing: 5.625 Inch
- Bolt Pattern: 5 X 150
- Center Cap Included: Yes
- Color: Gun Metal
- Construction: Cast
- Diameter: 20 Inch
- Finish: Machined
- Finish: Powdercoated
- Inside Diameter: 110.1 MM
- Lug Hole Diameter: 1.1 Inch
- Lug Hole Quantity: 5
- Lug Nut Seat Type: Conical
- Material: Aluminum
- Maximum Load Rating: 2500 LBS
- Offset: 16 MM
- Positive Offset: 16 MM
- Split Type: No
- Spoke Quantity: 16
- TPMS Compatible: Yes
- TPMS Included: No
- Wheel Size: 20x9 Inch
- Width: 9 Inch
Application Summary:
- 2008-2021 Lexus LX570
- 2008-2021 Toyota Land Cruiser
- 2007-2021 Toyota Tundra
